16-bit ultra-low-power wireless MCU featuring a Sub 1 GHz operating frequency range of 300 MHz to 928 MHz. This integrated circuit boasts 32kB Flash and 4kB RAM, with a 16-bit data bus width and a maximum operating frequency of 20MHz. Connectivity is supported via I2C, SPI, and UART interfaces, alongside 6 channels of 10-bit ADC and 30 programmable GPIO pins. Encased in a 48-VQFN EP package with gold contact plating, it operates within a temperature range of -40°C to 85°C and is RoHS compliant.
Frequency20MHz
PackageVQFN EP
Quick Jump:
Technical Specifications
Texas Instruments CC430F5147IRGZR technical specifications.
General
Package/Case
VQFN EP
Contact Plating
Gold
Current - Receiving
18.5mA
Current - Transmitting
36mA
Data Bus Width
16b
Density
32768B
Frequency
20MHz
Interface
I2C, SPI, UART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
4KB
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.8V
Number of A/D Converters
6
Number of ADC Channels
6
Number of GPIO
30
Number of Programmable I/O
30
Number of Timers/Counters
2
Number of UART Channels
1
Operating Frequency
300 MHz to 928 MHz
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
RAM Size
4KB
RoHS Compliant
Yes
Sensitivity
-117dBm
Series
CC430F5147
Watchdog Timer
Yes
Weight
0.004938oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CC430F5147IRGZR Datasheet
Download the complete datasheet for Texas Instruments CC430F5147IRGZR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

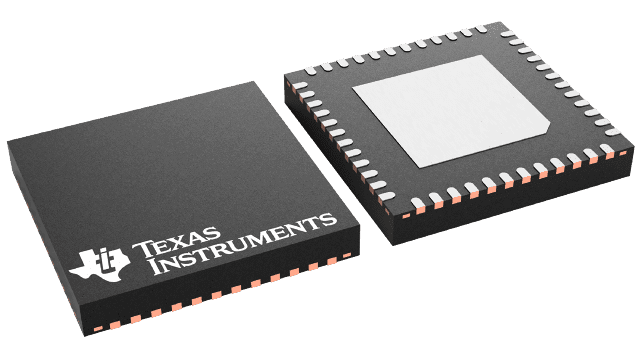

Product Images
