16-bit RISC core telecom IC featuring a 300 MHz to 928 MHz operating frequency. Includes 2KB RAM, 16384B density, and 8 analog-to-digital converters with 8 channels. Supports I2C, SPI, IrDA, and UART interfaces, with 44 GPIO pins. Operates from 1.8V to 3.6V, with a sensitivity of -117dBm and a watchdog timer. Packaged in VQFN EP with a maximum operating temperature of 85°C.
Frequency20MHz
PackageVQFN EP
Quick Jump:
Technical Specifications
Texas Instruments CC430F6135IRGC technical specifications.
General
Package/Case
VQFN EP
Core Architecture
RISC
Current - Receiving
18.5mA
Current - Transmitting
36mA
Data Bus Width
16b
Density
16384B
Frequency
20MHz
Interface
I2C, SPI, IrDA, UART
Lead Free
Contains Lead
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
2KB
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of A/D Converters
8
Number of ADC Channels
8
Number of GPIO
44
Operating Frequency
300 MHz to 928 MHz
Package Quantity
40
Packaging
Rail/Tube
Radiation Hardening
No
RAM Size
2048B
RoHS Compliant
Yes
Sensitivity
-117dBm
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CC430F6135IRGC Datasheet
Download the complete datasheet for Texas Instruments CC430F6135IRGC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

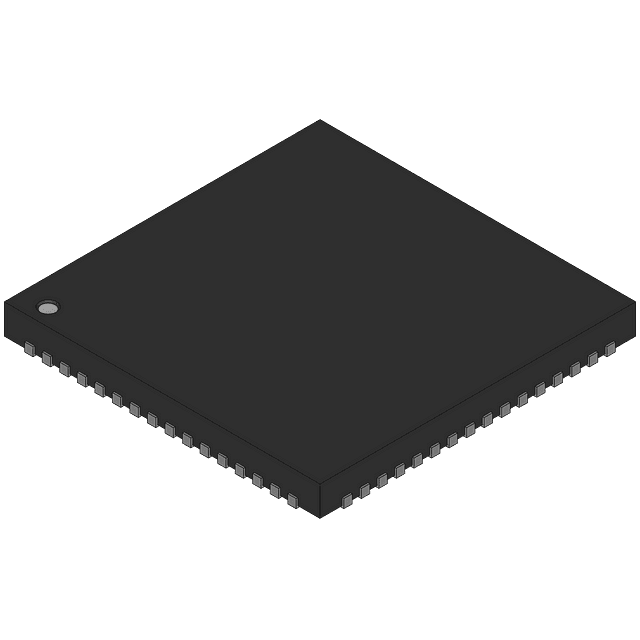

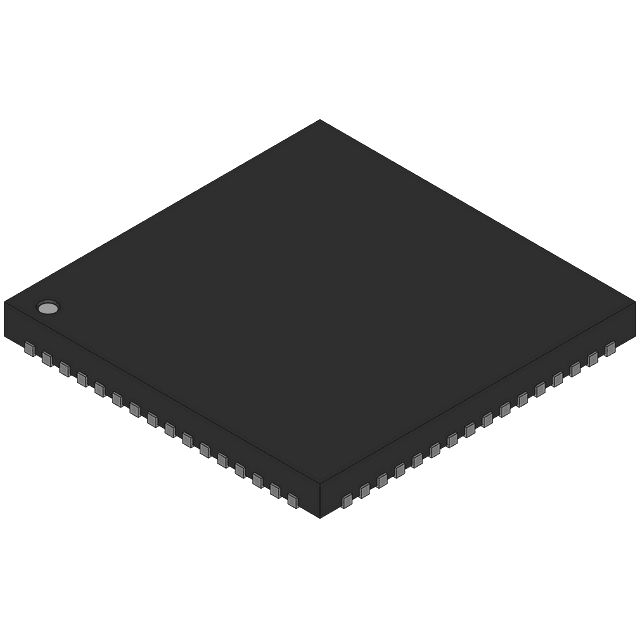

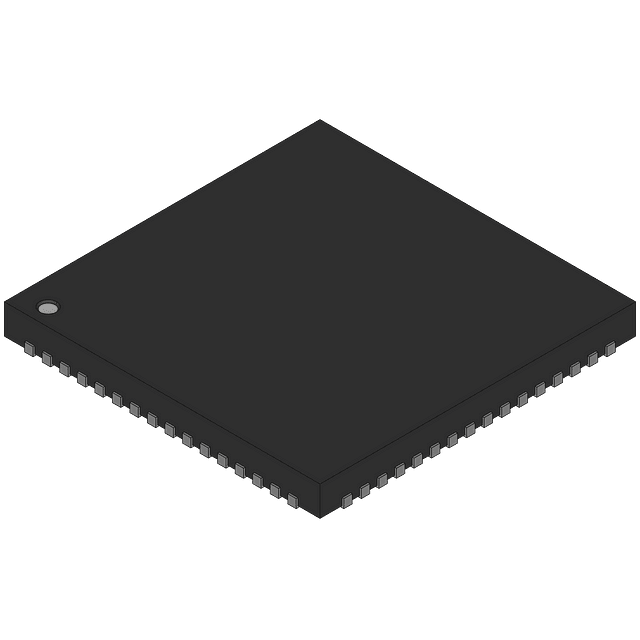

Product Images
