CMOS NOR gate IC featuring four independent 2-input NOR gates. Operates with a supply voltage range of 3V to 18V, offering a high level output current of -4.2mA and a low level output current of 4.2mA. This surface mount component, housed in a 14-SOIC package with gold contact plating, boasts a propagation delay of 90ns and a turn-on delay time of 120ns. Designed for operation across a wide temperature range from -55°C to 125°C, it is RoHS compliant.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CD4001BM technical specifications.
General
Package/Case
SOIC
Contact Plating
Gold
High Level Output Current
-4.2mA
Lead Free
Lead Free
Logic Function
NOR GATE
Low Level Output Current
4.2mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
18V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Bits
4
Number of Circuits
4
Number of Elements
4
Number of Gates
4
Number of Input Lines
2
Number of Inputs
2
Number of Output Lines
1
Number of Outputs
1
Output Current
6.8mA
Package Quantity
50
Packaging
Rail/Tube
Propagation Delay
90ns
Quiescent Current
5uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
4000B
Technology
CMOS
Turn-On Delay Time
120ns
Weight
0.004564oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CD4001BM Datasheet
Download the complete datasheet for Texas Instruments CD4001BM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

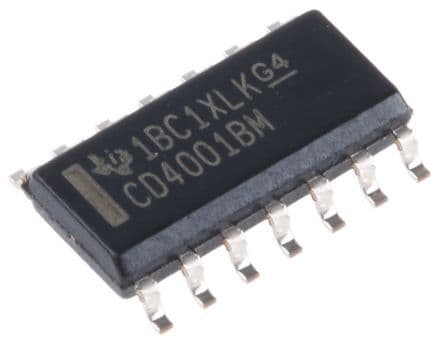

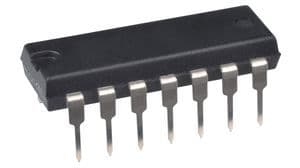

Product Images
