CMOS NOR Gate IC, featuring 4 independent 2-input NOR gates. Operates with supply voltages from 3V to 18V, offering a high level output current of -4.2mA and a low level output current of 4.2mA. This through-hole component is housed in a 14-PDIP package, with a propagation delay of 50ns and turn-on delay of 60ns. Suitable for operation across a wide temperature range of -55°C to 125°C, this RoHS compliant component is designed for reliable logic implementation.
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments CD4001UBE technical specifications.
General
Package/Case
PDIP
Height
4.57mm
High Level Output Current
-4.2mA
Lead Free
Lead Free
Length
19.3mm
Logic Function
NOR GATE
Low Level Output Current
4.2mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
18V
Min Supply Voltage
3V
Mount
Through Hole
Number of Bits
4
Number of Circuits
4
Number of Elements
4
Number of Gates
4
Number of Input Lines
2
Number of Inputs
2
Number of Output Lines
1
Number of Outputs
1
Output Current
6.8mA
Package Quantity
25
Packaging
Rail/Tube
Propagation Delay
50ns
Quiescent Current
1uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Schmitt Trigger Input
No
Series
4000B
Technology
CMOS
Turn-On Delay Time
60ns
Weight
0.032734oz
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CD4001UBE Datasheet
Download the complete datasheet for Texas Instruments CD4001UBE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

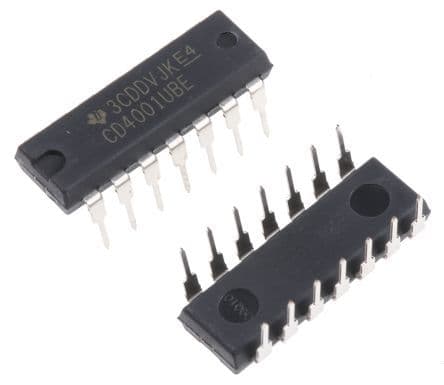

Product Images
