Dual D-Type Flip-Flop, CMOS technology, featuring positive edge clock triggering. Operates with a supply voltage range of 3V to 18V and a maximum frequency of 24MHz. This surface mount component, housed in a 14-SOIC package, offers two independent D-type flip-flops with non-inverting outputs. Specifications include a propagation delay of 400ns and a turn-on delay time of 300ns. RoHS compliant with a wide operating temperature range of -55°C to 125°C.
Frequency24MHz
PackageSOIC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments CD4013BM technical specifications.
General
Package/Case
SOIC
Clock Edge Trigger Type
Positive Edge
Contact Plating
Gold
Frequency
24MHz
Height
1.58mm
High Level Output Current
-4.2mA
Input Capacitance
5pF
Lead Free
Lead Free
Length
8.65mm
Logic Function
D-Type, Flip-Flop
Low Level Output Current
4.2mA
Max Frequency
24MHz
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
18V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Bits
2
Number of Bits per Element
1
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Number of Input Lines
1
Number of Inputs
1
Number of Output Lines
1
Number of Outputs
4
Output Current
6.8mA
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
400ns
Quiescent Current
4uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
4000B
Technology
CMOS
Thickness
1.58mm
Turn-On Delay Time
300ns
Weight
0.004564oz
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CD4013BM Datasheet
Download the complete datasheet for Texas Instruments CD4013BM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

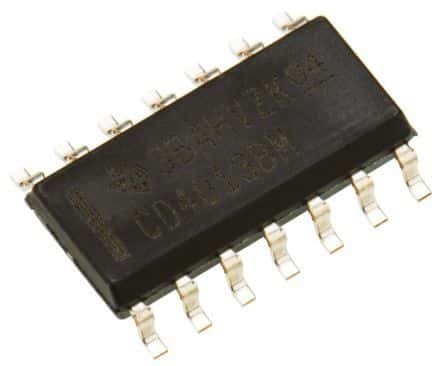

Product Images
