Frequency16MHz
PackageCDIP
MountingThrough Hole
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments CD40174BF3A technical specifications.
General
Package/Case
CDIP
Clock Edge Trigger Type
Positive Edge
Frequency
16MHz
High Level Output Current
-4.2mA
Lead Free
Contains Lead
Logic Function
D-Type
Low Level Output Current
4.2mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
18V
Min Supply Voltage
3V
Mount
Through Hole
Number of Bits
6
Number of Elements
1
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
300ns
Quiescent Current
20uA
RoHS Compliant
No
Technology
CMOS
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments CD40174BF3A Datasheet
Download the complete datasheet for Texas Instruments CD40174BF3A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

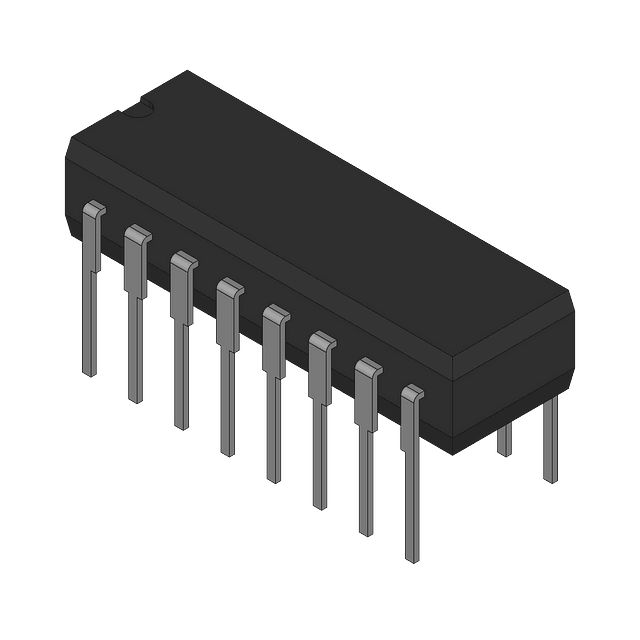

Product Images
