Dual JK-type master-slave flip-flop IC, positive edge triggered, featuring two independent elements. Operates with a 3V to 18V supply voltage, offering a maximum frequency of 24MHz. This CMOS logic component provides 4.2mA high-level and 4.2mA low-level output current, with a typical quiescent current of 4uA. Packaged in a 16-pin PDIP with gold contact plating, it supports through-hole mounting and is RoHS compliant.
Frequency24MHz
PackagePDIP
MountingThrough Hole
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments CD4027BE technical specifications.
General
Package/Case
PDIP
Clock Edge Trigger Type
Positive Edge
Contact Plating
Gold
Frequency
24MHz
Height
4.57mm
High Level Output Current
-4.2mA
Input Capacitance
5pF
Input Type
SINGLE-ENDED
Lead Free
Lead Free
Length
19.3mm
Logic Function
Flip-Flop, JK-Type
Low Level Output Current
4.2mA
Max Frequency
24MHz
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
18V
Min Supply Voltage
3V
Mount
Through Hole
Number of Bits
2
Number of Bits per Element
1
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Number of Input Lines
2
Number of Inputs
1
Number of Output Lines
1
Number of Outputs
1
Operating Supply Voltage
3.3V
Output Current
6.8mA
Package Quantity
25
Packaging
Rail/Tube
Polarity
Non-Inverting
Power Dissipation
500mW
Propagation Delay
300ns
Quiescent Current
4uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
4000B
Technology
CMOS
Thickness
3.9mm
Turn-On Delay Time
45ns
Weight
0.03357oz
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CD4027BE Datasheet
Download the complete datasheet for Texas Instruments CD4027BE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

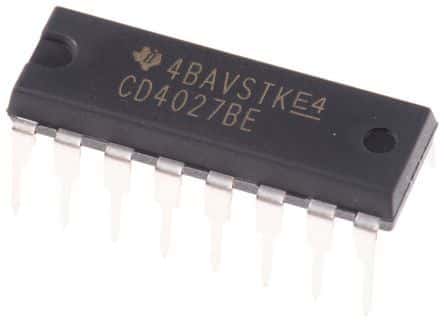

Product Images
