Transparent D-Type latch with 4 independent channels, operating from 3V to 18V supply. Features CMOS technology, non-inverting polarity, and a maximum supply current of 40nA. This through-hole component offers a 4-bit data capacity with a propagation delay of 500ns and a turn-on delay time of 40ns. Packaged in a 16-pin PDIP with gold contact plating, it supports a high level output current of -4.2mA and a low level output current of 4.2mA.
PackagePDIP
MountingThrough Hole
PolarityNon-Inverting
Power500mW
Quick Jump:
Technical Specifications
Texas Instruments CD4042BE technical specifications.
General
Package/Case
PDIP
Contact Plating
Gold
Height
4.57mm
High Level Output Current
-4.2mA
Independent Circuits
4
Input Capacitance
5pF
Lead Free
Lead Free
Length
19.3mm
Logic Function
D-Type, Latch
Low Level Output Current
4.2mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Current
40nA
Max Supply Voltage
18V
Min Supply Voltage
3V
Mount
Through Hole
Number of Bits
4
Number of Channels
4
Number of Circuits
4
Number of Elements
1
Number of Input Lines
4
Number of Output Lines
4
Operating Supply Voltage
3.3V
Output Current
6.8mA
Packaging
Rail/Tube
Polarity
Non-Inverting
Power Dissipation
500mW
Propagation Delay
500ns
Quiescent Current
20uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
4000B
Technology
CMOS
Turn-On Delay Time
40ns
Weight
0.03357oz
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CD4042BE Datasheet
Download the complete datasheet for Texas Instruments CD4042BE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

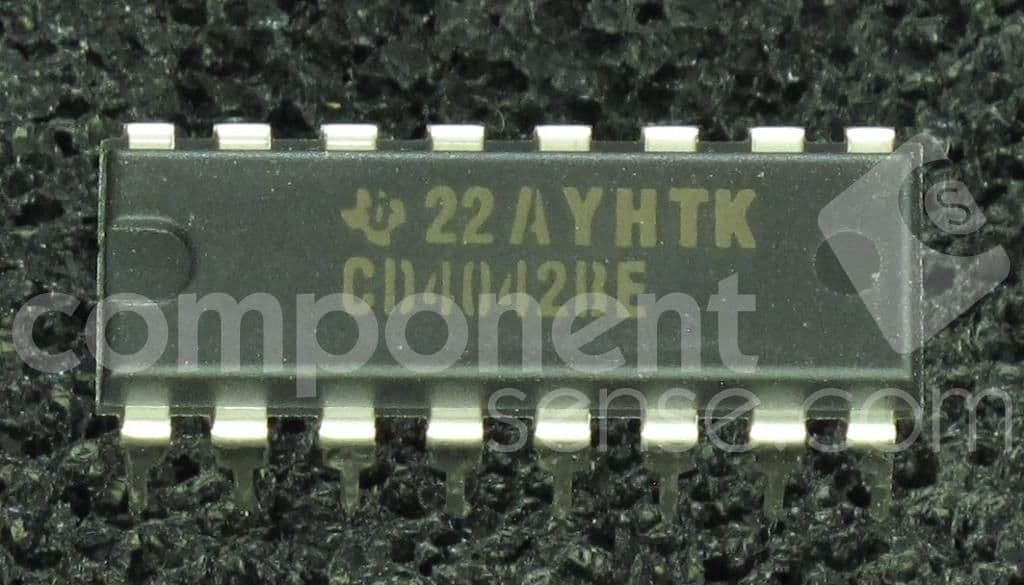

Product Images
