Triple 3-input CMOS AND gate IC, operating from a 3V to 18V supply. Features a maximum propagation delay of 90ns, with ±4.2mA high/low level output current. This through-hole mounted component offers 3 independent 3-input AND gates within a 14-pin PDIP package. RoHS compliant and designed for operation between -55°C and 125°C.
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments CD4073BEE4 technical specifications.
General
| Package/Case | PDIP |
| Height | 4.57mm |
| High Level Output Current | -4.2mA |
| Lead Free | Lead Free |
| Length | 19.3mm |
| Logic Function | AND GATE |
| Low Level Output Current | 4.2mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 3V |
| Mount | Through Hole |
| Number of Bits | 3 |
| Number of Circuits | 3 |
| Number of Elements | 3 |
| Number of Gates | 3 |
| Number of Input Lines | 3 |
| Number of Inputs | 3 |
| Number of Output Lines | 1 |
| Number of Outputs | 1 |
| Output Current | 6.8mA |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Propagation Delay | 90ns |
| Quiescent Current | 1uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Schmitt Trigger Input | No |
| Series | 4000B |
| Technology | CMOS |
| Turn-On Delay Time | 90ns |
| Weight | 0.032734oz |
| Width | 6.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments CD4073BEE4 Datasheet
Download the complete datasheet for Texas Instruments CD4073BEE4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

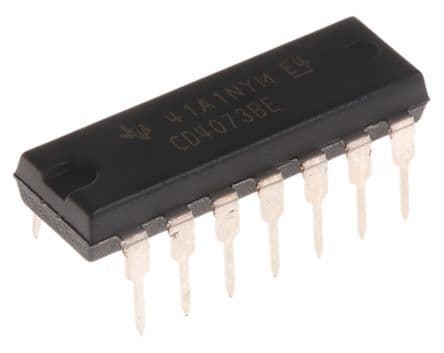

Product Images
