PackageCDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments CD4073BF technical specifications.
General
Package/Case
CDIP
High Level Output Current
-4.2mA
Lead Free
Contains Lead
Logic Function
AND GATE
Low Level Output Current
4.2mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
18V
Min Supply Voltage
3V
Mount
Through Hole
Number of Bits
3
Number of Elements
3
Number of Gates
3
Number of Outputs
1
Packaging
Rail/Tube
Propagation Delay
90ns
Quiescent Current
5uA
RoHS Compliant
No
Technology
CMOS
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments CD4073BF Datasheet
Download the complete datasheet for Texas Instruments CD4073BF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

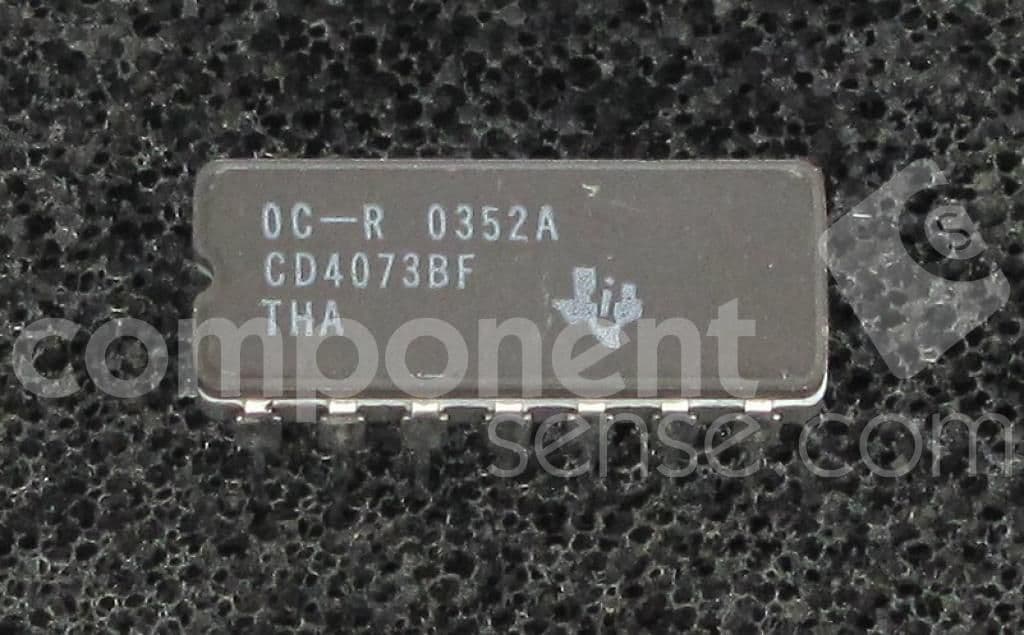

Product Images
