CMOS logic IC featuring four independent 2-input AND gates. Operates with supply voltages from 3V to 18V, offering a maximum output current of 6.8mA. This through-hole mounted component, packaged in a 14-pin PDIP, boasts a propagation delay of 90ns and a turn-on delay time of 12ns. With a wide operating temperature range of -55°C to 125°C, it is RoHS compliant and constructed with a plastic package body.
PackagePDIP
MountingThrough Hole
Power100mW
Quick Jump:
Technical Specifications
Texas Instruments CD4081BE technical specifications.
General
Package/Case
PDIP
Height
4.57mm
High Level Output Current
-4.2mA
Input Capacitance
5pF
JESD-30 Code
R-PDIP-T14
Lead Free
Lead Free
Length
19.3mm
Logic Function
AND GATE
Low Level Output Current
4.2mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Output Current
6.8mA
Max Supply Voltage
18V
Min Supply Voltage
3V
Mount
Through Hole
Number of Bits
4
Number of Circuits
4
Number of Elements
4
Number of Functions
4
Number of Gates
4
Number of Input Lines
2
Number of Inputs
2
Number of Output Lines
1
Number of Outputs
1
Output Current
6.8mA
Package Body Material
Plastic
Package Code
DIP
Package Quantity
25
Package Shape
Rectangular
Packaging
Rail/Tube
Power Dissipation
100mW
Propagation Delay
90ns
Quiescent Current
5uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Schmitt Trigger Input
No
Series
4000B
Surface Mount
No
Technology
CMOS
Temperature Grade
MILITARY
Terminal Finish
Gold
Terminal Form
Through Hole
Terminal Position
DUAL
Termination
Through Hole
Turn-On Delay Time
12ns
Weight
0.032734oz
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CD4081BE Datasheet
Download the complete datasheet for Texas Instruments CD4081BE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

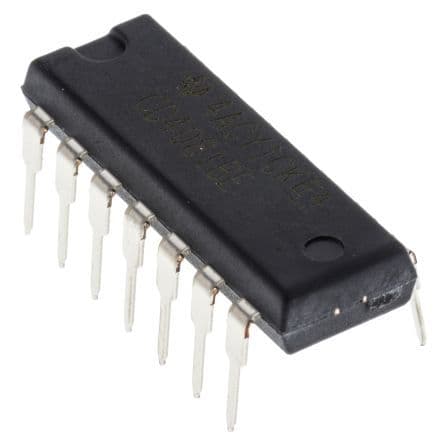

Product Images
