CMOS logic IC featuring four independent 2-input AND gates. Operates with supply voltages from 3V to 18V, offering a high level output current of -4.2mA and a low level output current of 4.2mA. This surface mount component, housed in a 14-SOIC package, has a propagation delay of 90ns and a turn-on delay time of 12ns. Maximum operating temperature is 125°C, with a quiescent current of 5uA.
PackageSOIC
MountingSurface Mount
Power500mW
Quick Jump:
Technical Specifications
Texas Instruments CD4081BM technical specifications.
General
Package/Case
SOIC
Height
1.58mm
High Level Output Current
-4.2mA
Input Capacitance
5pF
Lead Free
Lead Free
Length
8.65mm
Logic Function
AND GATE
Low Level Output Current
4.2mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
18V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Bits
4
Number of Circuits
4
Number of Elements
4
Number of Gates
4
Number of Input Lines
2
Number of Inputs
2
Number of Output Lines
1
Number of Outputs
1
Output Current
6.8mA
Package Quantity
50
Packaging
Rail/Tube
Power Dissipation
500mW
Propagation Delay
90ns
Quiescent Current
5uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Schmitt Trigger Input
No
Series
4000B
Technology
CMOS
Turn-On Delay Time
12ns
Weight
0.004564oz
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CD4081BM Datasheet
Download the complete datasheet for Texas Instruments CD4081BM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

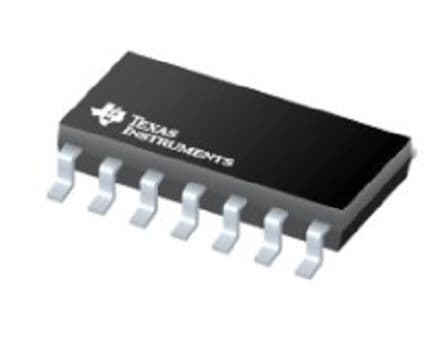

Product Images
