Dual 4-input CMOS AND gate IC with a supply voltage range of 3V to 18V. Features two independent 4-input AND gates, each with one output. Offers a high level output current of -4.2mA and a low level output current of 4.2mA, with a maximum output current of 6.8mA. Operates across a temperature range of -55°C to 125°C. Packaged in a 14-pin PDIP with gold contact plating, suitable for through-hole mounting.
PackagePDIP
MountingThrough Hole
Power500mW
Quick Jump:
Technical Specifications
Texas Instruments CD4082BE technical specifications.
General
| Package/Case | PDIP |
| Contact Plating | Gold |
| High Level Output Current | -4.2mA |
| Input Capacitance | 5pF |
| Lead Free | Lead Free |
| Logic Function | AND GATE |
| Low Level Output Current | 4.2mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Output Current | 6.8mA |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 3V |
| Mount | Through Hole |
| Number of Bits | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Gates | 2 |
| Number of Input Lines | 4 |
| Number of Inputs | 4 |
| Number of Output Lines | 1 |
| Number of Outputs | 1 |
| Output Current | 6.8mA |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Power Dissipation | 500mW |
| Propagation Delay | 90ns |
| Quiescent Current | 5uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 4000B |
| Technology | CMOS |
| Termination | Through Hole |
| Turn-On Delay Time | 120ns |
| Weight | 0.032734oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments CD4082BE Datasheet
Download the complete datasheet for Texas Instruments CD4082BE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

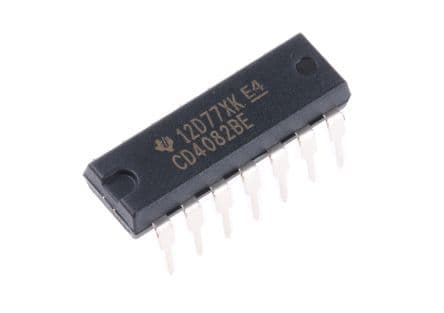

Product Images
