CMOS Hex Inverter/Buffer with 3-State Outputs, designed for through-hole mounting in a PDIP package. Features 6 independent buffer/inverter circuits, each with a single input and output. Operates with a supply voltage range of 3V to 18V, offering a low quiescent current of 20uA. Supports a wide temperature range from -55°C to 125°C, with a maximum power dissipation of 500mW. Provides high-level output current of -4.2mA and low-level output current of 25.2mA.
PackagePDIP
MountingThrough Hole
PolarityInverting
Power500mW
Quick Jump:
Technical Specifications
Texas Instruments CD4502BE technical specifications.
General
Package/Case
PDIP
Contact Plating
Gold
High Level Output Current
-4.2mA
Input Capacitance
5pF
Lead Free
Lead Free
Logic Function
Buffer, Inverter
Low Level Output Current
25.2mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
100mW
Max Supply Voltage
18V
Min Supply Voltage
3V
Mount
Through Hole
Number of Bits
6
Number of Channels
6
Number of Circuits
6
Number of Elements
1
Number of Input Lines
6
Number of Inputs
1
Number of Output Lines
6
Number of Outputs
6
Output Type
3-STATE
Package Quantity
25
Packaging
Rail/Tube
Polarity
Inverting
Power Dissipation
500mW
Propagation Delay
130ns
Quiescent Current
20uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
4000B
Technology
CMOS
Termination
Through Hole
Turn-On Delay Time
130ns
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CD4502BE Datasheet
Download the complete datasheet for Texas Instruments CD4502BE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

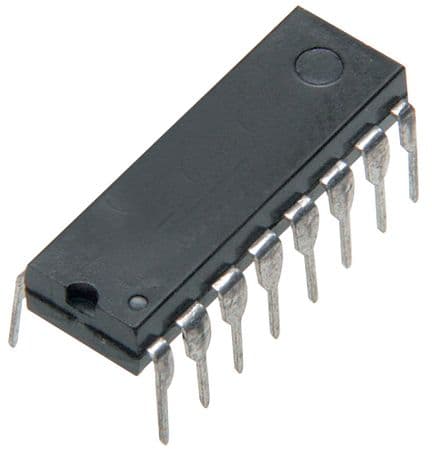

Product Images
