CMOS frequency divider IC, operating from 3V to 18V, features a 2.5MHz frequency capability and a 7-bit division. This through-hole component utilizes negative edge clock triggering and asynchronous reset, with a propagation delay of 800ns. Packaged in a 16-pin PDIP with gold contact plating, it operates across a wide temperature range of -55°C to 125°C.
Frequency2.5MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments CD4521BE technical specifications.
General
Package/Case
PDIP
Clock Edge Trigger Type
Negative Edge
Contact Plating
Gold
Frequency
2.5MHz
Height
4.57mm
Lead Free
Lead Free
Length
19.69mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
18V
Min Supply Voltage
3V
Mount
Through Hole
Number of Bits
7
Number of Bits per Element
24
Number of Circuits
1
Number of Elements
1
Package Quantity
25
Packaging
Rail/Tube
Propagation Delay
800ns
Radiation Hardening
No
Reach SVHC Compliant
No
Reset
Asynchronous
RoHS Compliant
Yes
Series
4000B
Technology
CMOS
Weight
0.03357oz
Width
6.6mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CD4521BE Datasheet
Download the complete datasheet for Texas Instruments CD4521BE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

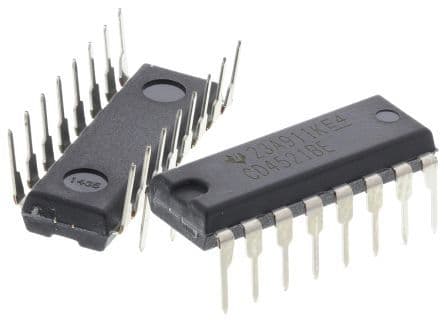

Product Images
