Octal D-Type Flip-Flop with 3-State Outputs, featuring 8 bits and non-inverting logic. This integrated circuit operates with a 5V supply voltage, supporting a frequency of 70MHz. It offers a low-level output current of 48mA and a high-level output current of -15mA. The device is designed for through-hole mounting in a 20-PDIP package with gold contact plating. RoHS compliant and lead-free, it operates within a temperature range of 0°C to 70°C.
Frequency70MHz
PackagePDIP
MountingThrough Hole
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments CD74FCT374E technical specifications.
General
| Package/Case | PDIP |
| Clock Edge Trigger Type | Positive Edge |
| Contact Plating | Gold |
| Frequency | 70MHz |
| High Level Output Current | -15mA |
| Lead Free | Lead Free |
| Logic Function | D-Type, Flip-Flop |
| Low Level Output Current | 48mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Through Hole |
| Number of Bits | 8 |
| Number of Bits per Element | 8 |
| Number of Circuits | 8 |
| Number of Elements | 1 |
| Number of Input Lines | 8 |
| Number of Output Lines | 3 |
| Operating Supply Voltage | 5V |
| Output Current | 48mA |
| Output Type | 3-STATE |
| Package Quantity | 20 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 6.6ns |
| Quiescent Current | 8uA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74FCT |
| Technology | CMOS |
| Turn-On Delay Time | 6.6ns |
| Weight | 0.042297oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments CD74FCT374E Datasheet
Download the complete datasheet for Texas Instruments CD74FCT374E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

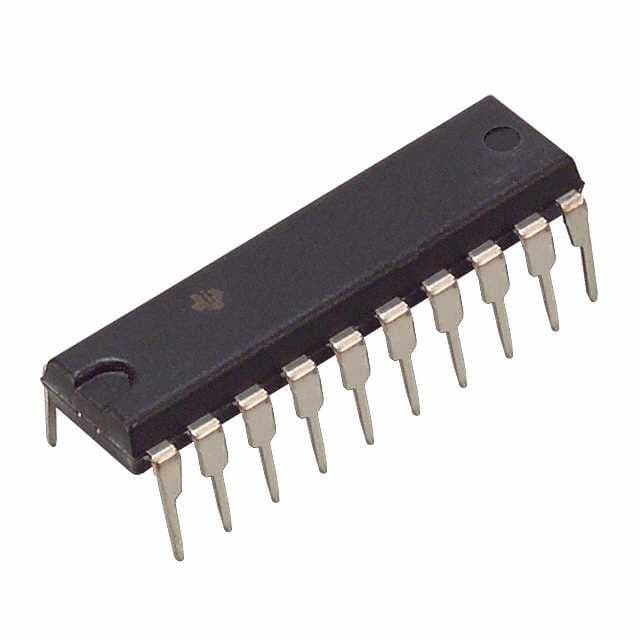

Product Images
