Quad 2-input NOR gate IC featuring high-speed CMOS logic. This integrated circuit operates with a supply voltage range of 2V to 6V and offers a propagation delay of 23ns. It supports through-hole mounting in a PDIP package with gold contact plating. The device provides a low-level output current of 5.2mA and a high-level output current of -5.2mA, with a maximum output current of 5.2mA. Operating temperature spans from -55°C to 125°C, and the component is RoHS compliant.
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments CD74HC02E technical specifications.
General
Package/Case
PDIP
Contact Plating
Gold
Height
4.57mm
High Level Output Current
-5.2mA
Lead Free
Lead Free
Length
19.69mm
Logic Function
NOR GATE
Low Level Output Current
5.2mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Output Current
5.2mA
Max Supply Voltage
6V
Min Supply Voltage
2V
Mount
Through Hole
Number of Bits
4
Number of Circuits
4
Number of Elements
4
Number of Gates
4
Number of Input Lines
2
Number of Inputs
2
Number of Output Lines
1
Number of Outputs
1
Operating Supply Voltage
2.5V
Output Current
5.2mA
Package Quantity
25
Packaging
Rail/Tube
Propagation Delay
23ns
Quiescent Current
2uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Schmitt Trigger Input
No
Series
74HC
Technology
CMOS
Termination
Through Hole
Turn-On Delay Time
23ns
Weight
0.032734oz
Width
6.6mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CD74HC02E Datasheet
Download the complete datasheet for Texas Instruments CD74HC02E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

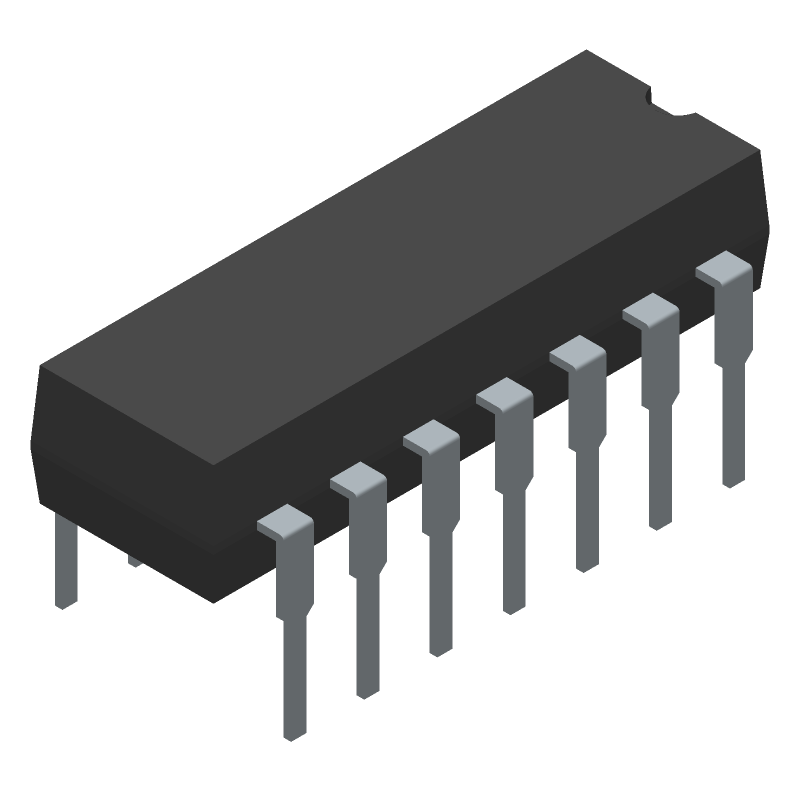

Product Images
