Quad 2-input AND gate IC featuring high-speed CMOS logic. This surface-mount device operates with a supply voltage range of 2V to 6V and offers a propagation delay of 15ns. It provides a high-level output current of -5.2mA and a low-level output current of 5.2mA. The component is RoHS compliant, lead-free, and operates across a temperature range of -55°C to 125°C.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CD74HC08MG4 technical specifications.
General
Package/Case
SOIC
Contact Plating
Gold
High Level Output Current
-5.2mA
Lead Free
Lead Free
Logic Function
AND GATE
Low Level Output Current
5.2mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
6V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Bits
4
Number of Circuits
4
Number of Elements
4
Number of Gates
4
Number of Input Lines
2
Number of Inputs
2
Number of Output Lines
1
Number of Outputs
1
Output Current
5.2mA
Package Quantity
50
Packaging
Rail/Tube
Propagation Delay
15ns
Quiescent Current
2uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
74HC
Technology
CMOS
Weight
0.004564oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CD74HC08MG4 Datasheet
Download the complete datasheet for Texas Instruments CD74HC08MG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

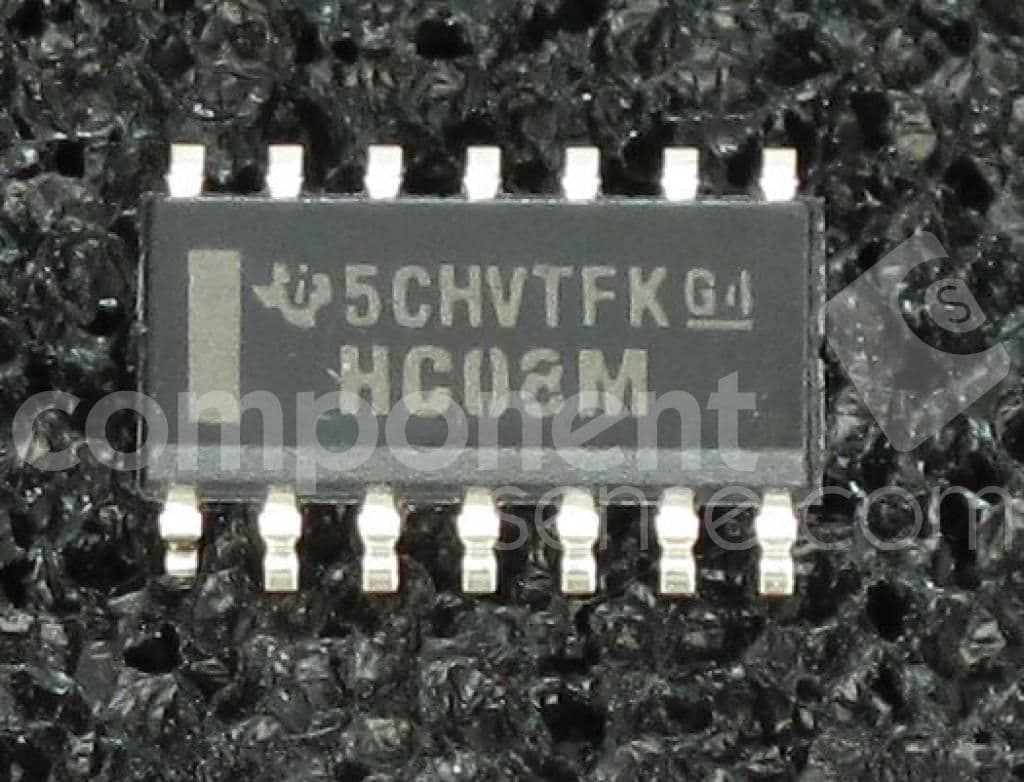

Product Images
