Dual negative edge-triggered J-K flip-flop IC, featuring complementary outputs and a 74HC series CMOS technology. Operates with a minimum supply voltage of 2V and a maximum of 6V, supporting a frequency up to 60MHz. Offers a high level output current of -5.2mA and a low level output current of 5.2mA. Packaged in a 16-lead TSSOP for surface mounting, with a wide operating temperature range from -55°C to 125°C.
Frequency60MHz
PackageTSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments CD74HC112PWE4 technical specifications.
General
| Package/Case | TSSOP |
| Clock Edge Trigger Type | Negative Edge |
| Frequency | 60MHz |
| High Level Output Current | -5.2mA |
| Input Type | SINGLE-ENDED |
| Lead Free | Contains Lead |
| Logic Function | Flip-Flop, JK-Type |
| Low Level Output Current | 5.2mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Bits | 2 |
| Number of Bits per Element | 1 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Input Lines | 2 |
| Number of Output Lines | 1 |
| Output Current | 5.2mA |
| Package Quantity | 90 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 175ns |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 74HC |
| Technology | CMOS |
| Turn-On Delay Time | 14ns |
| Weight | 0.002183oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments CD74HC112PWE4 Datasheet
Download the complete datasheet for Texas Instruments CD74HC112PWE4 to view detailed technical specifications.
No datasheet is available for this part.

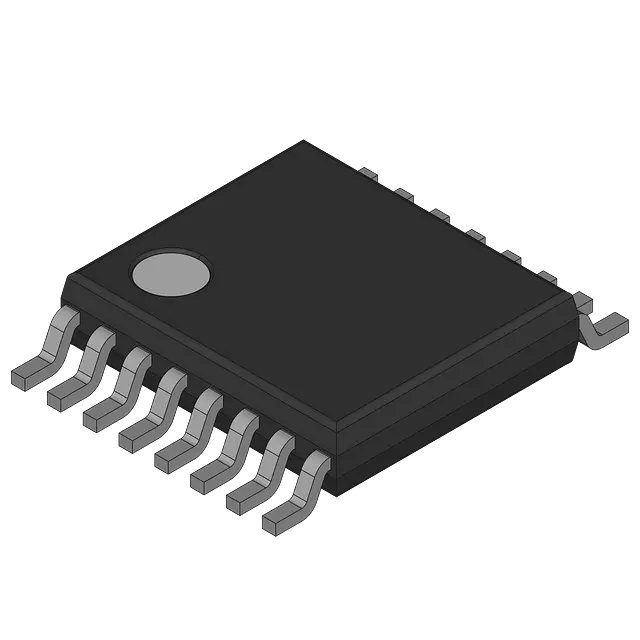

Product Images
