High-performance 4-channel buffer with 3-state outputs, operating from a 2V to 6V supply. Features CMOS technology and a propagation delay of 17ns. This integrated circuit offers non-inverting logic and a high level output current of -7.8mA, with a low level output current of 7.8mA. Packaged in a 14-pin PDIP with gold contact plating, it supports through-hole mounting and operates across a temperature range of -55°C to 125°C.
PackagePDIP
MountingThrough Hole
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments CD74HC125E technical specifications.
General
Package/Case
PDIP
Contact Plating
Gold
Height
4.57mm
High Level Output Current
-7.8mA
Lead Free
Lead Free
Length
19.3mm
Logic Function
Buffer, Inverting
Low Level Output Current
7.8mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
6V
Min Supply Voltage
2V
Mount
Through Hole
Number of Bits
4
Number of Bits per Element
1
Number of Channels
4
Number of Elements
4
Number of Input Lines
4
Number of Inputs
4
Number of Output Lines
4
Number of Outputs
4
Output Type
3-STATE
Package Quantity
25
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
17ns
Quiescent Current
8uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74HC
Technology
CMOS
Termination
Through Hole
Turn-On Delay Time
100ns
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CD74HC125E Datasheet
Download the complete datasheet for Texas Instruments CD74HC125E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

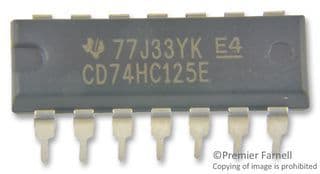

Product Images
