8-Bit Parallel-In/Serial-Out Shift Register, CMOS technology, operating from 2V to 6V supply. Features 9 input lines and 1 output line, with a propagation delay of 28ns. Packaged in a 16-SOIC with gold contact plating, suitable for surface mounting. Offers a wide operating temperature range of -55°C to 125°C. RoHS compliant and lead-free.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CD74HC165M technical specifications.
General
Package/Case
SOIC
Contact Plating
Gold
Direction
Unidirectional
Height
1.58mm
Lead Free
Lead Free
Length
9.9mm
Logic Function
Shift Register, OR GATE
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
6V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Bits
8
Number of Bits per Element
8
Number of Circuits
2
Number of Elements
1
Number of Input Lines
9
Number of Output Lines
1
Package Quantity
40
Packaging
Rail/Tube
Propagation Delay
28ns
Quiescent Current
8uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74HC
Technology
CMOS
Turn-On Delay Time
265ns
Weight
0.004998oz
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CD74HC165M Datasheet
Download the complete datasheet for Texas Instruments CD74HC165M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

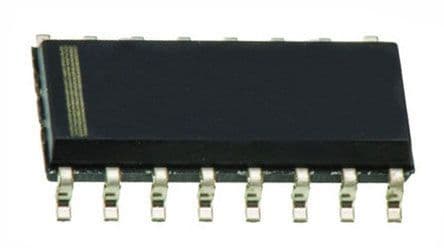

Product Images
