Octal transparent latch IC featuring 8 independent D-type latches with 3-state outputs. Operates from a 2V to 6V supply voltage range with a maximum operating temperature of 125°C. Provides 7.8mA output current at both high and low levels. Surface mountable in a 20-SOIC package with gold contact plating. CMOS technology ensures low quiescent current of 8µA.
PackageSOIC
Current8uA
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments CD74HC573M technical specifications.
General
| Package/Case | SOIC |
| Contact Plating | Gold |
| High Level Output Current | -7.8mA |
| Independent Circuits | 1 |
| Lead Free | Lead Free |
| Logic Function | D-Type, Latch |
| Low Level Output Current | 7.8mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Circuits | 8 |
| Number of Elements | 1 |
| Number of Input Lines | 9 |
| Number of Output Lines | 8 |
| Output Current | 7.8mA |
| Output Type | 3-STATE |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 30ns |
| Quiescent Current | 8uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74HC |
| Supply Current | 8uA |
| Technology | CMOS |
| Turn-On Delay Time | 30ns |
| Weight | 0.017662oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments CD74HC573M Datasheet
Download the complete datasheet for Texas Instruments CD74HC573M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

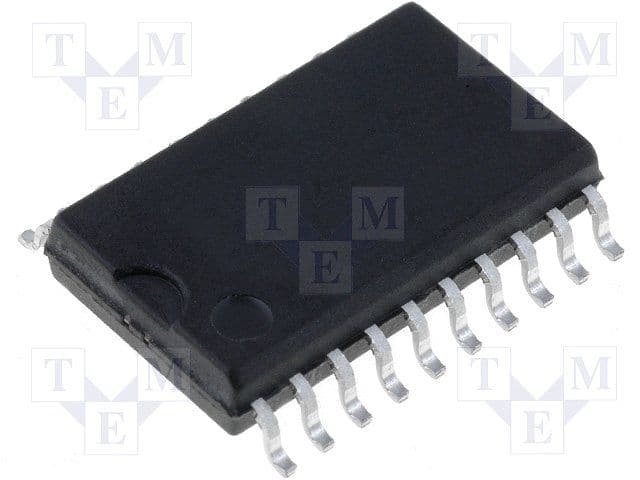

Product Images
