4-output, 1-input clock fanout buffer operating up to 250MHz. Features LVCMOS input and 4 LVCMOS outputs, with a 1:4 fanout ratio. Housed in a compact 8-pin TSSOP package, this surface-mount component offers a propagation delay of 2.6ns and a turn-on delay of 10ns. Operates within a 2.3V to 3.6V supply voltage range, with a maximum supply current of 10mA. RoHS compliant and lead-free.
Frequency250MHz
PackageTSSOP
Current20mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CDCLVC1104PW technical specifications.
General
Package/Case
TSSOP
Frequency
250MHz
Height
1.05mm
Input
LVCMOS
Lead Free
Lead Free
Length
4.5mm
Max Frequency
250MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
10mA
Max Supply Voltage
3.6V
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of Circuits
1
Number of Outputs
4
Package Quantity
150
Packaging
Rail/Tube
Propagation Delay
2.6ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
20mA
Turn-On Delay Time
10ns
Width
3.1mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CDCLVC1104PW Datasheet
Download the complete datasheet for Texas Instruments CDCLVC1104PW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

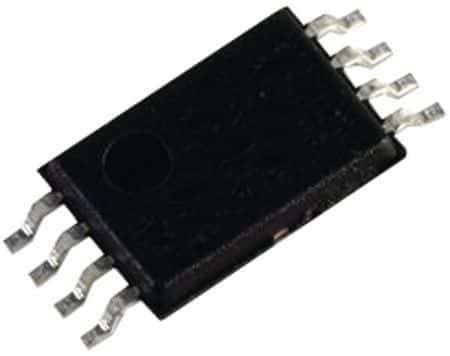

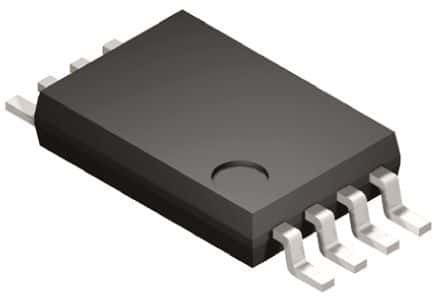

Product Images
