High-performance 1:9 differential clock driver featuring LVPECL input and nine outputs. Operates at frequencies up to 650MHz with a propagation delay of 0.6ns. Designed for surface mount applications in a 28-PLCC package with gold contact plating. Supports a wide operating temperature range of -40°C to 85°C and a supply voltage of 3V to 3.6V. This lead-free, RoHS compliant component offers a maximum power dissipation of 525mW.
Frequency650MHz
PackagePLCC
MountingSurface Mount
Power525mW
Quick Jump:
Technical Specifications
Texas Instruments CDCVF111FNR technical specifications.
General
Package/Case
PLCC
Contact Plating
Gold
Frequency
650MHz
Input
LVPECL
Lead Free
Lead Free
Max Frequency
650MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
525mW
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Nominal Supply Current
100mA
Number of Circuits
1
Number of Outputs
9
Operating Supply Voltage
3.3V
Package Quantity
750
Packaging
Tape and Reel
Power Dissipation
525mW
Propagation Delay
0.6ns
Quiescent Current
100mA
Radiation Hardening
No
RoHS Compliant
Yes
Series
CDCVF111
Turn-On Delay Time
0.6ns
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CDCVF111FNR Datasheet
Download the complete datasheet for Texas Instruments CDCVF111FNR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

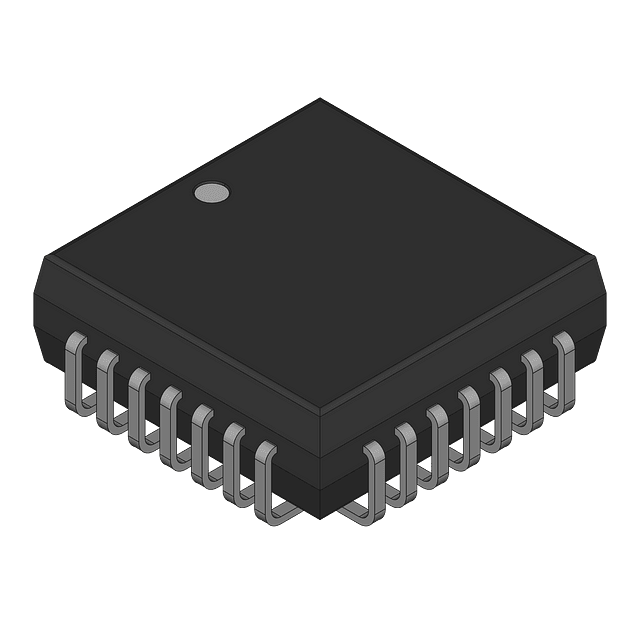

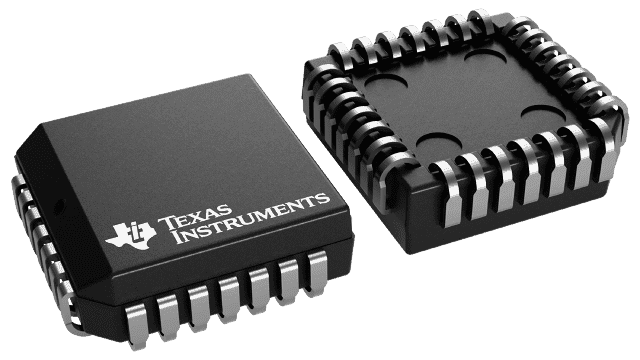

Product Images
