8-bit microcontroller featuring 8KB FLASH memory and 256B RAM. Operates at up to 20MHz with an 8-bit data bus width. Offers SPI, USART, and UART interfaces, with 39 I/Os (37 programmable). Includes 2 timers/counters and peripherals like Brown-out Detect/Reset, POR, PWM, and WDT. Operates from 2.7V to 5.5V supply and a temperature range of 0°C to 70°C. Packaged in a surface-mount TSSOP-48.
Frequency3.33MHz
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments COP8CBE9IMT9 technical specifications.
General
Access Time
6.67us
Package/Case
TSSOP
Data Bus Width
8b
Interface
SPI, USART, UART
Lead Free
Contains Lead
Max Frequency
3.33MHz
Max Operating Temperature
70°C
Max Supply Voltage
5.5V
Memory Size
8KB
Memory Type
FLASH,
Min Operating Temperature
0°C
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of I/Os
39
Number of Programmable I/O
37
Number of Timers/Counters
2
Oscillator Type
Internal
Package Quantity
38
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
256B
RoHS Compliant
No
Series
COP8™ 8C
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments COP8CBE9IMT9 Datasheet
Download the complete datasheet for Texas Instruments COP8CBE9IMT9 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

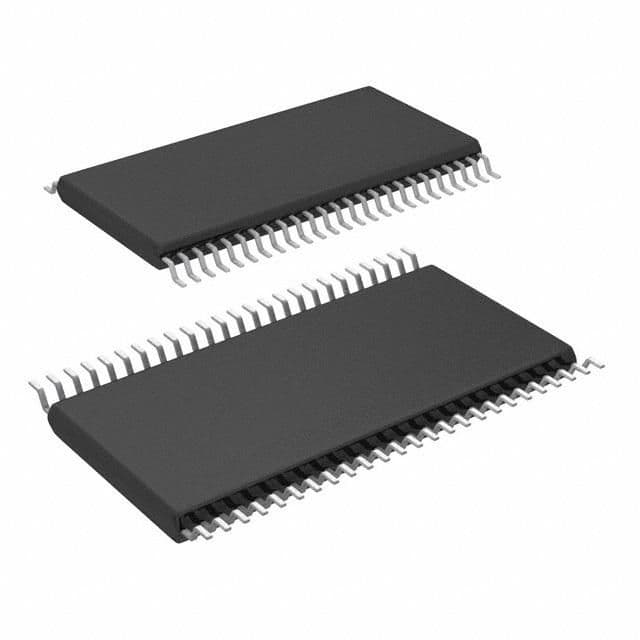

Product Images
