16-bit transparent D-type latches with 3-state outputs, featuring 2 independent circuits. This surface mount component operates from a 4.5V to 5.5V supply voltage, with a typical 5V operating voltage. It offers a propagation delay of 5.5ns and a turn-on delay time of 2ns. The device supports a high level output current of -32mA and a low level output current of 32mA, with a total output current of 64mA. Packaged in a 48-SSOP with gold contact plating, it operates across a temperature range of -40°C to 85°C and is RoHS compliant.
PackageSSOP
Current16.5mA
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments CY74FCT16373CTPVC technical specifications.
General
Package/Case
SSOP
Contact Plating
Gold
High Level Output Current
-32mA
Independent Circuits
2
Lead Free
Lead Free
Logic Function
D-Type, Latch
Low Level Output Current
32mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Bits
16
Number of Circuits
1
Number of Elements
2
Number of Input Lines
16
Number of Output Lines
16
Operating Supply Voltage
5V
Output Current
64mA
Output Type
3-STATE
Package Quantity
25
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
5.5ns
Quiescent Current
500uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
74FCT
Supply Current
16.5mA
Technology
CMOS
Turn-On Delay Time
2ns
Weight
0.021175oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CY74FCT16373CTPVC Datasheet
Download the complete datasheet for Texas Instruments CY74FCT16373CTPVC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

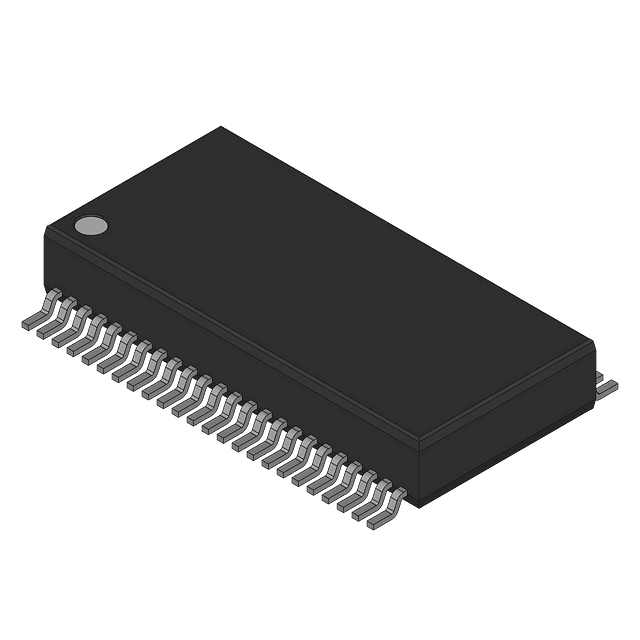

Product Images
