Octal buffer/driver featuring 3-state outputs, designed for surface mounting in a 20-SOIC package with gold contact plating. This 8-bit, 8-channel device offers inverting logic functions and operates with a supply voltage of 5V, ranging from 4.75V to 5.25V. It supports a low-level output current of 64mA and a high-level output current of -32mA, with a propagation delay of 4.8ns. The component is RoHS compliant and operates within a temperature range of -40°C to 85°C.
PackageSOIC
MountingSurface Mount
PolarityInverting
Quick Jump:
Technical Specifications
Texas Instruments CY74FCT240ATSOCT technical specifications.
General
Package/Case
SOIC
Contact Plating
Gold
High Level Output Current
-32mA
Lead Free
Lead Free
Logic Function
Buffer, Inverter
Low Level Output Current
64mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Surface Mount
Number of Bits
8
Number of Channels
8
Number of Circuits
2
Number of Elements
2
Number of Input Lines
8
Number of Inputs
4
Number of Output Lines
3
Number of Outputs
8
Operating Supply Voltage
5V
Output Type
3-STATE
Package Quantity
1
Packaging
Tape and Reel
Polarity
Inverting
Propagation Delay
4.8ns
RoHS Compliant
Yes
Series
74FCT
Technology
CMOS
Turn-On Delay Time
4.8ns
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CY74FCT240ATSOCT Datasheet
Download the complete datasheet for Texas Instruments CY74FCT240ATSOCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

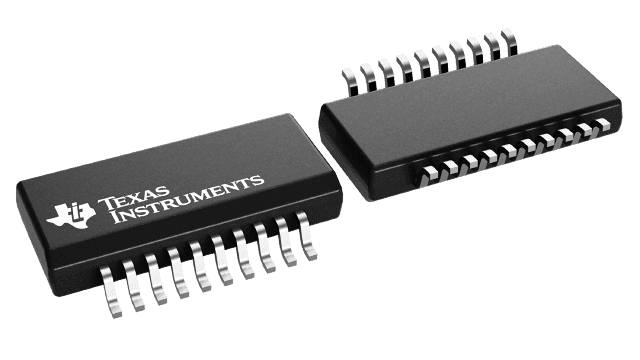

Product Images
