Octal registered transceiver featuring 3-state outputs, designed for bidirectional data transfer. This surface mount component operates with a 5V supply voltage (4.75V to 5.25V) and offers 8 bits of data handling. Key specifications include a propagation delay of 8.5ns and a turn-on delay time of 12.5ns, with output currents of -32mA (high) and 64mA (low). Packaged in a 24-SSOP with gold contact plating, it supports a temperature range of -40°C to 85°C and is RoHS compliant.
PackageSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments CY74FCT543TQCT technical specifications.
General
Package/Case
SSOP
Contact Plating
Gold
Direction
Bidirectional
High Level Output Current
-32mA
Lead Free
Lead Free
Logic Function
Transceiver, Inverting
Low Level Output Current
64mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Surface Mount
Number of Bits
8
Number of Bits per Element
8
Number of Channels
8
Number of Circuits
8
Number of Elements
1
Operating Supply Voltage
5V
Output Type
3-STATE
Package Quantity
1
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
8.5ns
RoHS Compliant
Yes
Series
74FCT
Technology
CMOS
Turn-On Delay Time
12.5ns
Weight
0.004568oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CY74FCT543TQCT Datasheet
Download the complete datasheet for Texas Instruments CY74FCT543TQCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

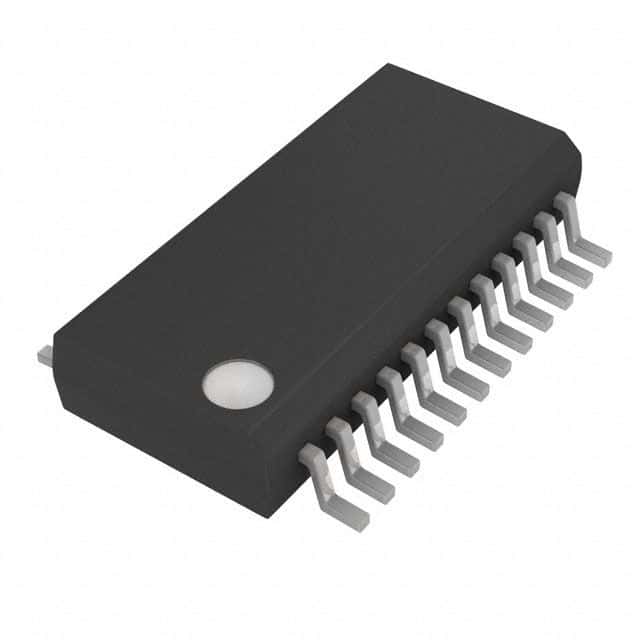

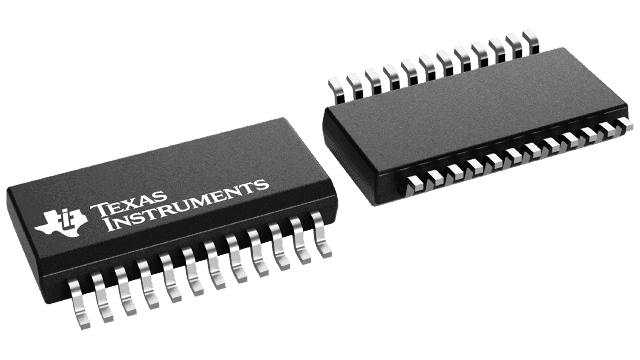

Product Images
