8-Bit Digital-to-Analog Converter (DAC) with a single channel and rail-to-rail voltage output. Features an SPI interface for communication and operates from a single supply voltage range of 2.7V to 5.5V. Offers a resolution of 8 bits with a typical Integral Nonlinearity (INL) of 0.75 LSB and a settling time of 5µs. Packaged in a SOT-23-6 surface mount configuration with tin-lead contact plating, suitable for operation between -40°C and 105°C.
PackageSOT-23-6
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments DAC081S101CIMK technical specifications.
General
Package/Case
SOT-23-6
Contact Plating
Tin, Lead
Differential Output
No
Integral Nonlinearity (INL)
0.75LSB
Interface
SPI
Lead Free
Contains Lead
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Bits
8
Number of Channels
1
Number of Converters
1
Number of D/A Converters
1
Number of DAC Channels
1
Output Polarity
Unipolar
Output Type
Voltage
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Resolution
8b
RoHS Compliant
No
Settling Time
5us
Supply Type
Single
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments DAC081S101CIMK Datasheet
Download the complete datasheet for Texas Instruments DAC081S101CIMK to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

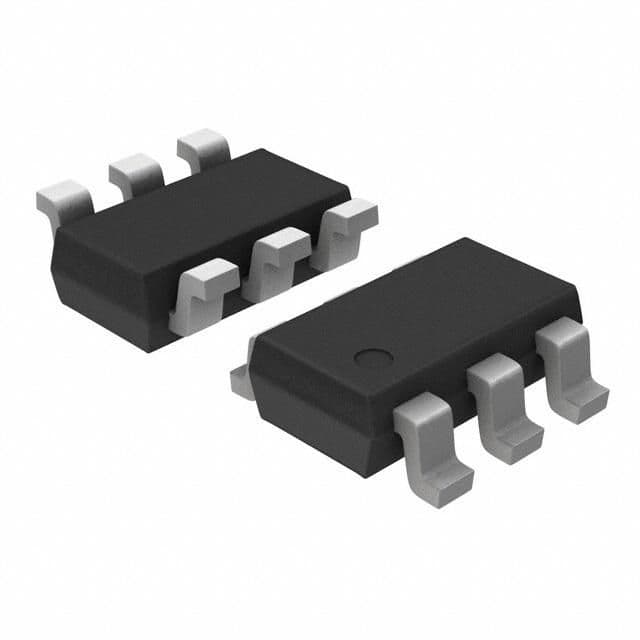

Product Images
