16-bit digital-to-analog converter (DAC) featuring a single channel and an internal voltage reference. This precision DAC supports an SPI interface for communication and provides a 4mA-to-20mA current loop drive. Operating from a 2.7V to 3.6V supply range, it offers an integral nonlinearity of 9 LSB. Designed for surface mounting, this component is packaged in a 16-WQFN with tin plating and is RoHS compliant.
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments DAC161S997RGHR technical specifications.
General
Contact Plating
Tin
Integral Nonlinearity (INL)
9LSB
Interface
SPI
Lead Free
Lead Free
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Converters
1
Number of DAC Channels
1
Operating Supply Voltage
3.3V
Package Quantity
4500
Packaging
Tape and Reel
Resolution
16b
RoHS Compliant
Yes
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DAC161S997RGHR Datasheet
Download the complete datasheet for Texas Instruments DAC161S997RGHR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

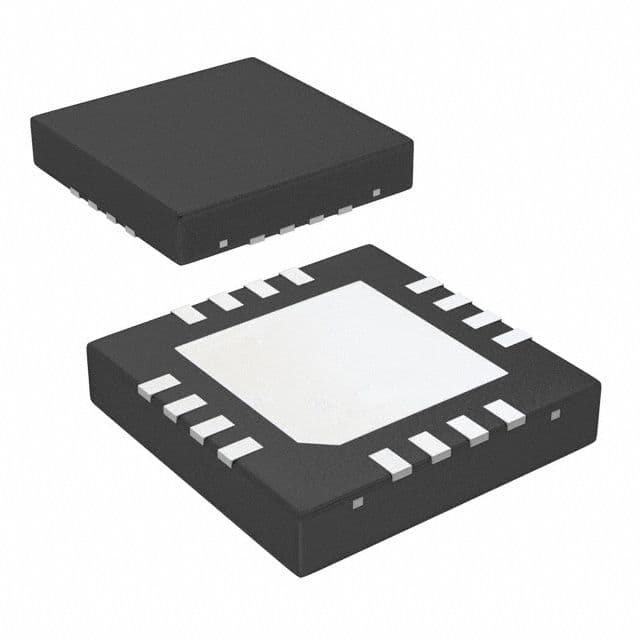

Product Images
