Quad 8-bit Digital-to-Analog Converter (DAC) with I²C interface, featuring a 188 kS/s conversion rate and 0.5 LSB Integral Nonlinearity. This unipolar voltage output device operates from a 2.7V to 5.5V single supply, consuming a maximum of 1.5mW. Encased in a tiny VSSOP package with gold contact plating, it offers a wide operating temperature range of -40°C to 105°C.
PackageVSSOP
Current600uA
Power1.5mW
Quick Jump:
Technical Specifications
Texas Instruments DAC5574IDGS technical specifications.
General
Package/Case
VSSOP
Contact Plating
Gold
Conversion Rate
188KS/s
Differential Nonlinearity
0.25LSB
Input Type
SERIAL
Integral Nonlinearity (INL)
0.5LSB
Interface
I2C
Lead Free
Lead Free
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.5mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Number of Bits
8
Number of Channels
4
Number of Converters
4
Number of DAC Channels
4
Output Polarity
Unipolar
Output Type
Voltage
Package Quantity
80
Packaging
Rail/Tube
Power Consumption
1.5mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
8b
RoHS Compliant
Yes
Sampling Rate
188KS/s
Series
DAC5574
Settling Time
8us
Supply Current
600uA
Supply Type
Single
Termination
SMD/SMT
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DAC5574IDGS Datasheet
Download the complete datasheet for Texas Instruments DAC5574IDGS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

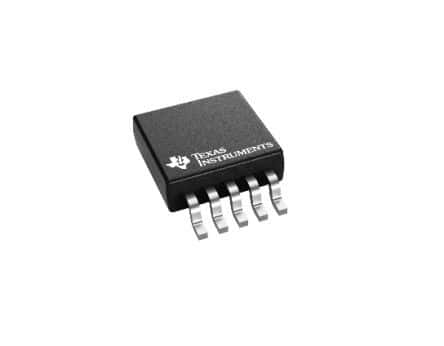

Product Images
