Dual-channel, 12-bit digital-to-analog converter (DAC) with a 200 MSPS conversion rate. Features 2 LSB differential and integral nonlinearity, a parallel interface, and a 3.3V operating supply voltage. This unipolar output DAC offers 73dB SNR and 85dB SFDR, with a settling time of 0.02µs. Packaged in a 48-TQFP with gold contact plating, it operates from -40°C to 85°C.
PackageTQFP
Power330mW
Quick Jump:
Technical Specifications
Texas Instruments DAC5662IPFBR technical specifications.
General
Package/Case
TQFP
Contact Plating
Gold
Conversion Rate
200MS/s
Differential Nonlinearity
2LSB
Integral Nonlinearity (INL)
2LSB
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
390mW
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Nominal Supply Current
75mA
Number of Bits
12
Number of Channels
2
Number of Converters
2
Number of DAC Channels
2
Operating Supply Voltage
3.3V
Output Polarity
Unipolar
Package Quantity
1000
Packaging
Tape and Reel
Power Consumption
330mW
Radiation Hardening
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
200000000S/s
Series
DAC5662
Settling Time
0.02us
Signal to Noise Ratio (SNR)
73dB
Spurious-free dynamic range (SFDR)
85dB
Supply Type
Analog, Digital
Weight
0.004847oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DAC5662IPFBR Datasheet
Download the complete datasheet for Texas Instruments DAC5662IPFBR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

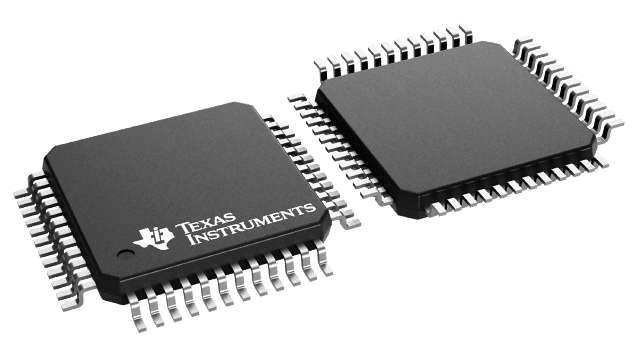

Product Images
