14-bit, 400 MSPS digital-to-analog converter (DAC) with 2x-4x interpolation. Features a 48-HTQFP package with gold contact plating. Offers 2 LSB differential nonlinearity and 3.5 LSB integral nonlinearity. Operates with a 3V to 3.6V supply voltage and consumes 435mW power. Includes a parallel interface and a settling time of 0.02µs.
PackageHTQFP
Power435mW
Quick Jump:
Technical Specifications
Texas Instruments DAC5674IPHPG4 technical specifications.
General
Package/Case
HTQFP
Contact Plating
Gold
Conversion Rate
400MS/s
Differential Nonlinearity
2LSB
Integral Nonlinearity (INL)
3.5LSB
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
550mW
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Nominal Supply Current
107mA
Number of Bits
14
Number of Converters
1
Number of DAC Channels
1
Operating Supply Voltage
3.3V
Package Quantity
250
Packaging
Tray
Power Consumption
435mW
Resolution
14b
RoHS Compliant
Yes
Sampling Rate
400000000S/s
Series
CommsDAC™
Settling Time
0.02us
Signal to Noise Ratio (SNR)
70dB
Spurious-free dynamic range (SFDR)
76dB
Supply Type
Analog, Digital
Weight
0.004744oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DAC5674IPHPG4 Datasheet
Download the complete datasheet for Texas Instruments DAC5674IPHPG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

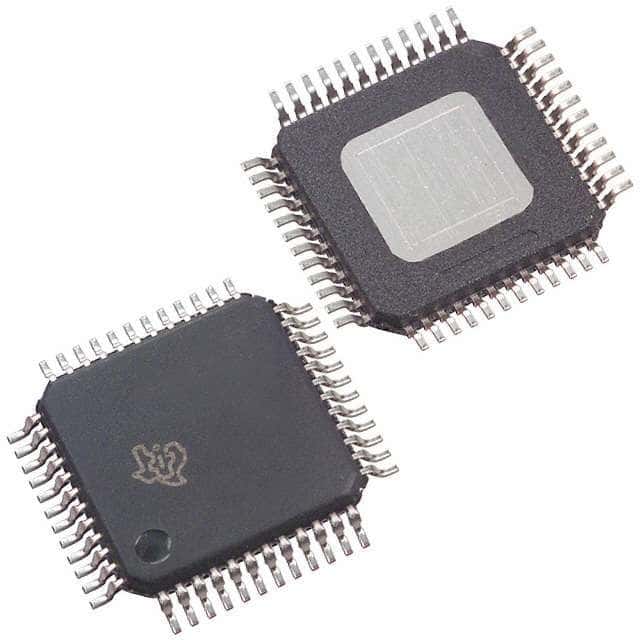

Product Images
