Quad, 10-bit digital-to-analog converter (DAC) with an I²C interface. Features a 188 kS/s conversion rate, 0.5 LSB differential nonlinearity, and 2 LSB integral nonlinearity. Operates from a 2.7V to 5.5V single supply, with a maximum power dissipation of 1.5mW. Housed in a VSSOP package with gold contact plating, suitable for temperatures from -40°C to 105°C.
PackageVSSOP
Power1.5mW
Quick Jump:
Technical Specifications
Texas Instruments DAC6574IDGSR technical specifications.
General
Package/Case
VSSOP
Contact Plating
Gold
Conversion Rate
188KS/s
Differential Nonlinearity
0.5LSB
Integral Nonlinearity (INL)
2LSB
Interface
I2C
Lead Free
Lead Free
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.5mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Nominal Supply Current
600uA
Number of Bits
10
Number of Channels
4
Number of Converters
2
Number of DAC Channels
4
Output Polarity
Unipolar
Output Type
Voltage
Package Quantity
2500
Packaging
Tape and Reel
Power Consumption
1.5mW
Resolution
10b
RoHS Compliant
Yes
Sampling Rate
188000S/s
Series
DAC6574
Settling Time
7us
Supply Type
Single
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DAC6574IDGSR Datasheet
Download the complete datasheet for Texas Instruments DAC6574IDGSR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

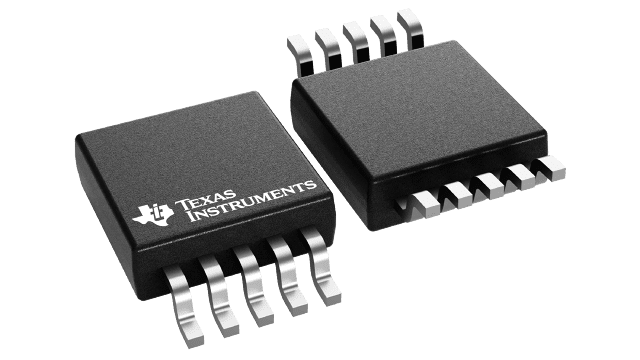

Product Images
