16-bit digital-to-analog converter (DAC) featuring a 16-bit parallel bus interface. Achieves a 100KS/s conversion rate with 4LSB integral and differential nonlinearity. Operates with a dual supply voltage range of 11.4V to 16.5V, supporting a 15V dual supply. Housed in a 28-SOIC package, this lead-free, RoHS-compliant component offers a 10µs settling time and 10mW power consumption. Suitable for operation across a -40°C to 85°C temperature range.
PackageSOIC
Power10mW
Quick Jump:
Technical Specifications
Texas Instruments DAC715U technical specifications.
General
Package/Case
SOIC
Conversion Rate
100KS/s
Differential Nonlinearity
4LSB
Dual Supply Voltage
15V
Integral Nonlinearity (INL)
4LSB
Interface
Parallel
Lead Free
Lead Free
Max Dual Supply Voltage
16.5V
Min Dual Supply Voltage
11.4V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
600mW
Max Supply Voltage
16.5V
Min Supply Voltage
11.4V
Number of Bits
16
Number of Channels
1
Number of Converters
1
Number of DAC Channels
1
Output Type
Voltage
Package Quantity
20
Packaging
Rail/Tube
Power Consumption
10mW
Reach SVHC Compliant
No
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
100KS/s
Series
DAC715
Settling Time
10us
Supply Type
Dual
Weight
0.025778oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DAC715U Datasheet
Download the complete datasheet for Texas Instruments DAC715U to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

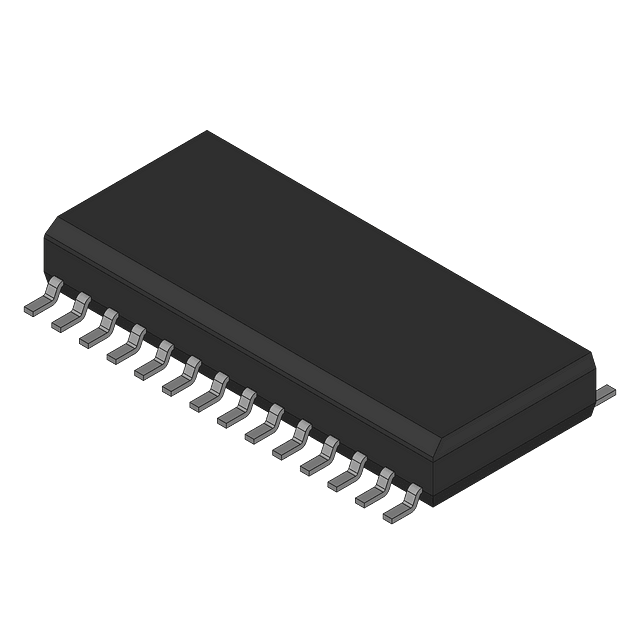

Product Images
