Dual 12-bit voltage output digital-to-analog converter with ultralow glitch performance. Features a 1MS/s conversion rate, 0.5LSB differential nonlinearity, and 1LSB integral nonlinearity. Operates from a 2.7V to 5.5V single supply with a nominal supply current of 300uA. Utilizes an SPI interface and offers unipolar output. Packaged in a 16-VQFN with gold contact plating, suitable for operation between -40°C and 105°C.
PackageVQFN
Quick Jump:
Technical Specifications
Texas Instruments DAC7553IRGTR technical specifications.
General
Package/Case
VQFN
Contact Plating
Gold
Conversion Rate
1MS/s
Differential Nonlinearity
0.5LSB
Integral Nonlinearity (INL)
1LSB
Interface
SPI
Lead Free
Lead Free
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Nominal Supply Current
300uA
Number of Bits
12
Number of Channels
2
Number of Converters
2
Number of DAC Channels
2
Output Polarity
Unipolar
Output Type
SERIAL, Voltage
Package Quantity
3000
Packaging
Tape and Reel
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
1000000S/s
Series
DAC7553
Settling Time
5us
Supply Type
Single
Weight
0.000808oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DAC7553IRGTR Datasheet
Download the complete datasheet for Texas Instruments DAC7553IRGTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

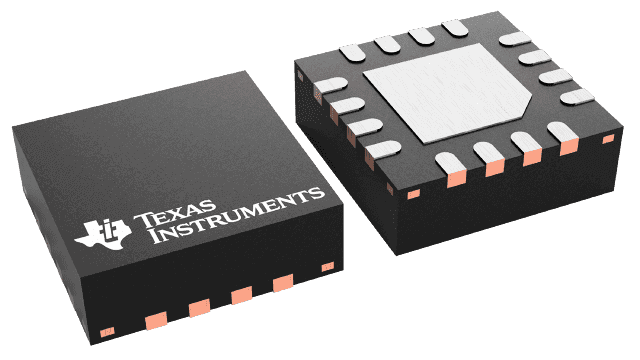

Product Images
