12-bit dual voltage output digital-to-analog converter featuring an SPI interface. Offers 0.75 LSB integral nonlinearity and 0.25 LSB differential nonlinearity. Includes an integrated 2.5V, 4ppm/°C voltage reference. Operates from a 2.7V to 5.5V single supply with a maximum power dissipation of 7.15mW. Packaged in a 10-VSSOP with gold contact plating, suitable for operation between -40°C and 125°C.
PackageMSOP
Quick Jump:
Technical Specifications
Texas Instruments DAC7562SDGSR technical specifications.
General
Package/Case
MSOP
Contact Plating
Gold
Differential Nonlinearity
0.25LSB
Integral Nonlinearity (INL)
0.75LSB
Interface
SPI
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
7.15mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Number of Bits
12
Number of Converters
2
Number of DAC Channels
2
Output Polarity
Unipolar
Output Type
Voltage
Package Quantity
1
Packaging
Tape and Reel
Resolution
12b
RoHS Compliant
Yes
Series
DAC7562
Settling Time
7us
Supply Type
Single
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DAC7562SDGSR Datasheet
Download the complete datasheet for Texas Instruments DAC7562SDGSR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

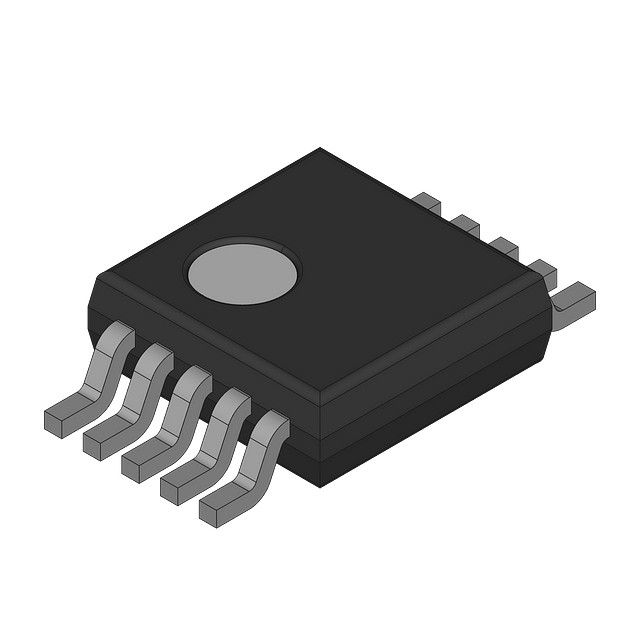

Product Images
