Dual, 12-bit digital-to-analog converter featuring a 130 kS/s conversion rate and SPI interface. Achieves 1 LSB differential and integral nonlinearity with a unipolar voltage output. Operates from a 4.75V to 5.25V single supply, consuming a nominal 750µA. Packaged in an 8-SOIC with gold contact plating, suitable for -40°C to 85°C operation.
PackageD
Power3.5mW
Quick Jump:
Technical Specifications
Texas Instruments DAC7612UB technical specifications.
General
Package/Case
D
Contact Plating
Gold
Conversion Rate
130KS/s
Differential Nonlinearity
1LSB
Integral Nonlinearity (INL)
1LSB
Interface
SPI
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Nominal Supply Current
750uA
Number of Bits
12
Number of Channels
2
Number of Converters
2
Number of DAC Channels
2
Number of Outputs
2
Operating Supply Voltage
5V
Output Polarity
Unipolar
Output Type
Voltage
Package Quantity
75
Packaging
Rail/Tube
Power Consumption
3.5mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
130KS/s
Series
DAC7612
Settling Time
7us
Supply Type
Single
Weight
0.002677oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DAC7612UB Datasheet
Download the complete datasheet for Texas Instruments DAC7612UB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

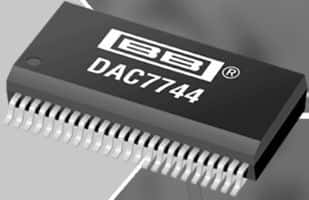

Product Images
