12-bit, unipolar voltage output digital-to-analog converter with a parallel interface. Features 1LSB integral and differential nonlinearity, a 143 kS/s sampling rate, and a 7 µs settling time. Operates from a single 5V supply with a nominal current of 500 µA. Housed in a 20-pin SSOP package with gold contact plating, suitable for operation between -40°C and 85°C.
PackageSSOP
Power2.5mW
Quick Jump:
Technical Specifications
Texas Instruments DAC7621EB technical specifications.
General
Package/Case
SSOP
Contact Plating
Gold
Conversion Rate
143KS/s
Differential Nonlinearity
1LSB
Height
1.95mm
Integral Nonlinearity (INL)
1LSB
Interface
Parallel
Lead Free
Lead Free
Length
7.2mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Nominal Supply Current
500uA
Number of Bits
12
Number of Channels
1
Number of Converters
1
Number of DAC Channels
1
Operating Supply Voltage
5V
Output Polarity
Unipolar
Output Type
Voltage
Package Quantity
70
Packaging
Rail/Tube
Power Consumption
2.5mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
143KS/s
Series
DAC7621
Settling Time
7us
Supply Type
Single
Weight
0.006162oz
Width
5.3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DAC7621EB Datasheet
Download the complete datasheet for Texas Instruments DAC7621EB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

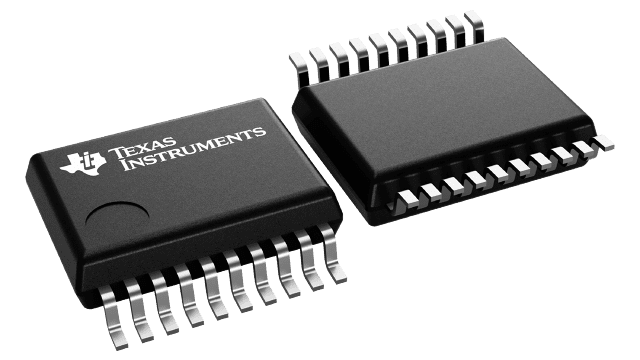

Product Images
