12-bit quad voltage output digital-to-analog converter featuring 4 DAC channels and a parallel interface. Achieves a conversion rate of 100 kS/s with 1 LSB integral nonlinearity and differential nonlinearity. Operates with a dual supply voltage of 5V, within a range of 4.75V to 5.25V, and offers bipolar and unipolar output polarity. Packaged in a 28-SOIC with gold contact plating, this lead-free component is RoHS compliant and suitable for operation between -40°C and 85°C.
PackageSOIC
Power15mW
Quick Jump:
Technical Specifications
Texas Instruments DAC7624UB/1K technical specifications.
General
| Package/Case | SOIC |
| Contact Plating | Gold |
| Conversion Rate | 100KS/s |
| Differential Nonlinearity | 1LSB |
| Dual Supply Voltage | 5V |
| Full Scale Error | 8LSB |
| Integral Nonlinearity (INL) | 1LSB |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 5.25V |
| Min Dual Supply Voltage | 4.75V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Nominal Supply Current | -1.6mA |
| Number of Bits | 12 |
| Number of Converters | 4 |
| Number of DAC Channels | 4 |
| Operating Supply Voltage | 5V |
| Output Polarity | Bipolar, Unipolar |
| Output Type | Voltage |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Consumption | 15mW |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 100KS/s |
| Series | DAC7624 |
| Settling Time | 10us |
| Weight | 0.025778oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DAC7624UB/1K Datasheet
Download the complete datasheet for Texas Instruments DAC7624UB/1K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

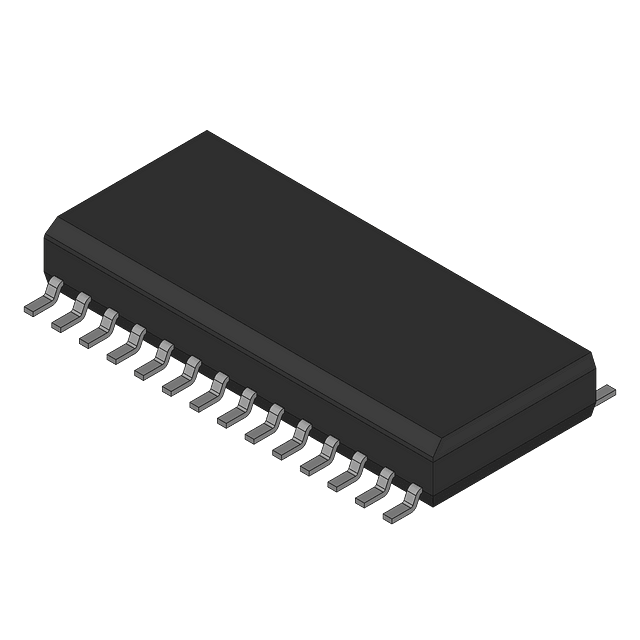

Product Images
