Texas Instruments
DAC7641Y/2K
PARALLEL, WORD INPUT LOADING, 8us SETTLING TIME, 16-BIT DAC, PQFP32, TQFP-32
PackageTQFP
Quick Jump:
Technical Specifications
Texas Instruments DAC7641Y/2K technical specifications.
General
Package/Case
TQFP
Conversion Rate
100KS/s
Integral Nonlinearity (INL)
4LSB
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Nominal Supply Current
-500uA
Number of Bits
16
Number of Converters
1
Output Type
Voltage
Package Quantity
1
Packaging
Tape and Reel
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
100KS/s
Settling Time
8us
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DAC7641Y/2K Datasheet
Download the complete datasheet for Texas Instruments DAC7641Y/2K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

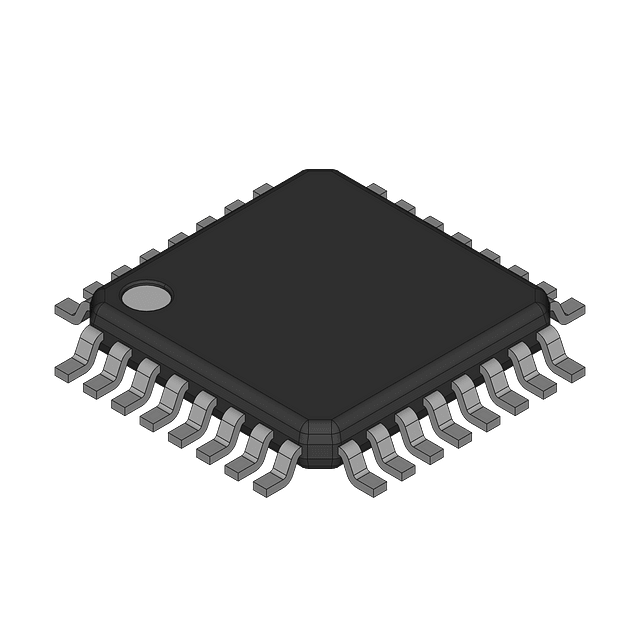

Product Images
