Texas Instruments
DAC7643VFBT
PARALLEL, WORD INPUT LOADING, 8us SETTLING TIME, 16-BIT DAC, PQFP32, GREEN, PLASTIC, LQFP-32
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments DAC7643VFBT technical specifications.
General
Package/Case
LQFP
Conversion Rate
100KS/s
Integral Nonlinearity (INL)
3LSB
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
2.5mW
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Surface Mount
Nominal Supply Current
-800uA
Number of Bits
16
Number of Converters
2
Package Quantity
250
Packaging
Tape and Reel
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
100000S/s
Settling Time
8us
Supply Type
Dual
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DAC7643VFBT Datasheet
Download the complete datasheet for Texas Instruments DAC7643VFBT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

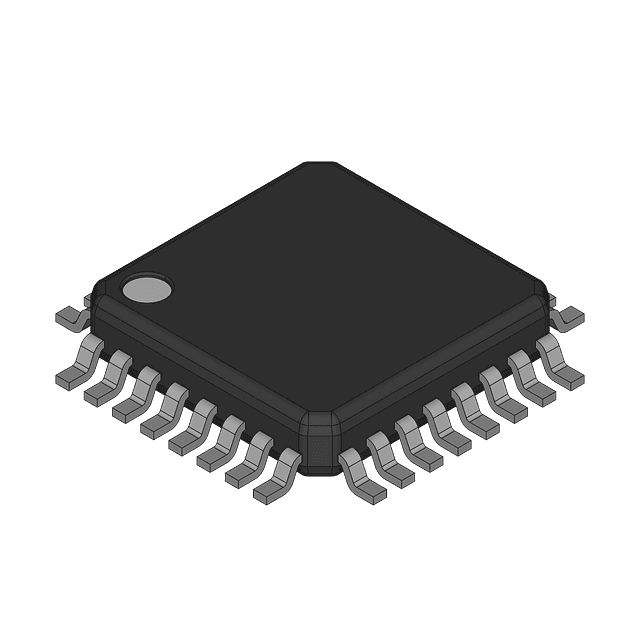

Product Images
