Quad 16-bit Digital-to-Analog Converter (DAC) with a 12µs settling time and ±1 LSB differential nonlinearity. Features a parallel interface, bipolar/unipolar output polarity, and voltage output type. Operates with a dual supply voltage range of 4.75V to 5.25V, consuming a maximum of 18mW. Packaged in a 64-LQFP with gold contact plating, this lead-free and RoHS compliant component offers a 100kS/s conversion rate.
PackageLQFP
Power18mW
Quick Jump:
Technical Specifications
Texas Instruments DAC7664YBT technical specifications.
General
Package/Case
LQFP
Contact Plating
Gold
Conversion Rate
100KS/s
Differential Nonlinearity
2LSB
Differential Output
No
Dual Supply Voltage
5V
Integral Nonlinearity (INL)
3LSB
Interface
Parallel
Lead Free
Lead Free
Max Dual Supply Voltage
5.25V
Min Dual Supply Voltage
4.75V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
18mW
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Nominal Supply Current
4mA
Number of Bits
16
Number of Channels
4
Number of Converters
4
Number of D/A Converters
4
Number of DAC Channels
4
Operating Supply Voltage
5V
Output Polarity
Bipolar, Unipolar
Output Type
Voltage
Package Quantity
250
Packaging
Tape and Reel
Power Consumption
18mW
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
100000S/s
Settling Time
12us
Supply Type
Dual
Weight
0.012088oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DAC7664YBT Datasheet
Download the complete datasheet for Texas Instruments DAC7664YBT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

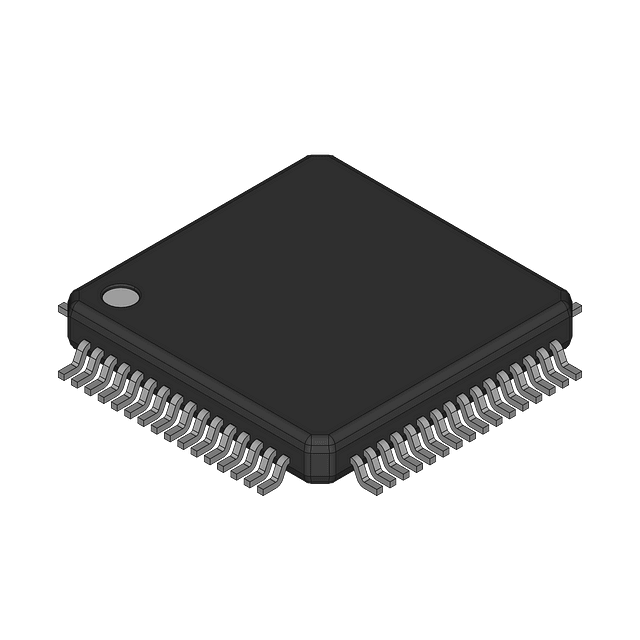

Product Images
