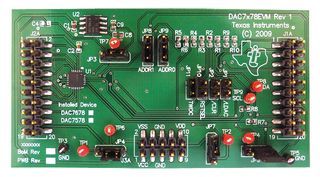

The DAC7678EVM is an 8-channel 12-bit digital-to-analog converter (DAC) module from Texas Instruments. It features an integral nonlinearity of 1LSB and a resolution of 12 bits. The module operates over a supply voltage range of 2.7V to 5.5V and has a settling time of 12us. It is available in a single module package with a bulk packaging option.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments DAC7678EVM datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Module |
| Integral Nonlinearity (INL) | 1LSB |
| Interface | I2C, 2-Wire |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Number of Bits | 12 |
| Number of D/A Converters | 8 |
| Number of DAC Channels | 8 |
| Output Type | Voltage |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Resolution | 12b |
| Settling Time | 12us |
| RoHS | Not Compliant |
