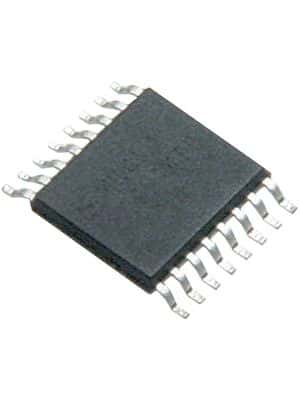

Quad channel, 16-bit digital-to-analog converter (DAC) with a serial SPI interface. Features a 93KS/s conversion rate, 1LSB differential nonlinearity, and 64LSB integral nonlinearity. Operates from a 2.7V to 5.5V single supply voltage, with a typical power consumption of 2.7mW. Packaged in a 16-TSSOP with gold contact plating, suitable for surface mount applications. Offers a signal-to-noise ratio of 94dB and a settling time of 10us.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments DAC8534IPW datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TSSOP |
| Contact Plating | Gold |
| Conversion Rate | 93KS/s |
| Converter Type | GENERAL PURPOSE |
| Differential Nonlinearity | 1LSB |
| Height | 1.15mm |
| Integral Nonlinearity (INL) | 64LSB |
| Interface | SPI |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Number of Bits | 16 |
| Number of Channels | 4 |
| Number of Converters | 4 |
| Number of DAC Channels | 4 |
| Number of Outputs | 4 |
| Operating Supply Voltage | 5V |
| Output Polarity | Unipolar |
| Output Type | Voltage |
| Package Quantity | 90 |
| Packaging | Rail/Tube |
| Power Consumption | 2.7mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 16b |
| RoHS Compliant | Yes |
| Sampling Rate | 93KS/s |
| Series | DAC8534 |
| Settling Time | 10us |
| Signal to Noise Ratio (SNR) | 94dB |
| Spurious-free dynamic range (SFDR) | 69dB |
| Supply Current | 950uA |
| Supply Type | Single |
| Termination | SMD/SMT |
| Weight | 0.002222oz |
| Width | 4.4mm |
| RoHS | Compliant |
