Technical Specifications
Texas Instruments DAC8564EVM technical specifications.
General
| Package/Case | Module |
| Conversion Rate | 200KS/s |
| Evaluation Kit | Yes |
| Interface | Serial, SPI |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Number of Bits | 16 |
| Number of D/A Converters | 4 |
| Number of DAC Channels | 4 |
| Operating Supply Voltage | 5V |
| Output Type | Voltage |
| Package Quantity | 1 |
| Packaging | Box |
| Reach SVHC Compliant | No |
| Resolution | 16b |
| Settling Time | 8us |
Compliance
| RoHS | Not Compliant |
Datasheet
Texas Instruments DAC8564EVM Datasheet
Download the complete datasheet for Texas Instruments DAC8564EVM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

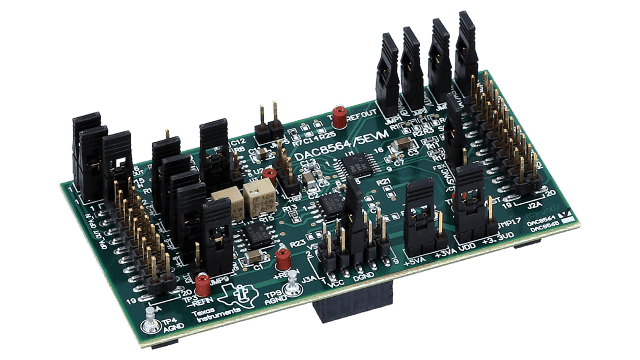

Product Images
