14-bit unipolar digital-to-analog converter (DAC) with a serial SPI interface. Features a 0.5µs settling time and a 2MS/s conversion rate. Offers 1LSB integral nonlinearity and 0.5LSB differential nonlinearity. Operates from a 2.7V to 5.5V single supply voltage. Packaged in a VSON with gold contact plating.
PackageVSON
Quick Jump:
Technical Specifications
Texas Instruments DAC8801IDRBR technical specifications.
General
Package/Case
VSON
Contact Plating
Gold
Conversion Rate
2MS/s
Differential Nonlinearity
0.5LSB
Integral Nonlinearity (INL)
1LSB
Interface
SPI, Serial
Lead Free
Contains Lead
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Number of Bits
14
Number of Channels
1
Number of Converters
1
Number of DAC Channels
1
Output Polarity
Unipolar
Output Type
SERIAL
Package Quantity
3000
Packaging
Tape and Reel
Resolution
14b
RoHS Compliant
Yes
Sampling Rate
2000000S/s
Series
DAC8801
Settling Time
0.5us
Supply Type
Single
Weight
0.000808oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DAC8801IDRBR Datasheet
Download the complete datasheet for Texas Instruments DAC8801IDRBR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

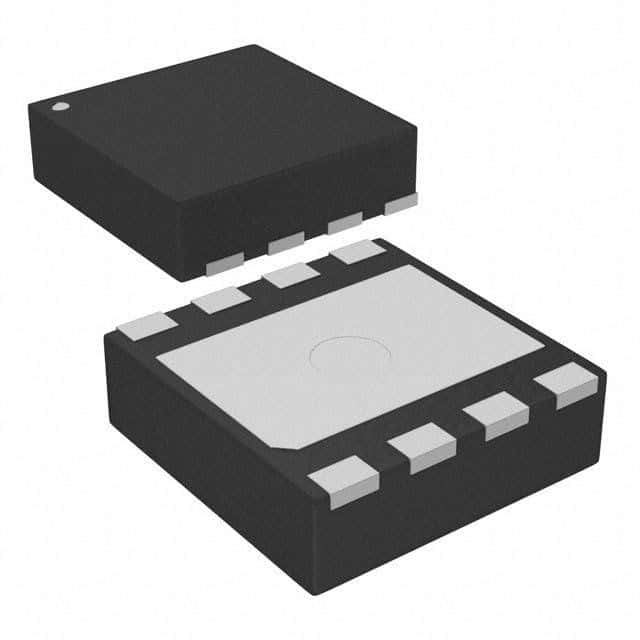

Product Images
