16-bit, single-channel Digital-to-Analog Converter (DAC) with a serial SPI interface. Features a 2MS/s conversion rate and 1µs settling time. Offers 1LSB differential nonlinearity and 2LSB integral nonlinearity. Operates from a 2.7V to 5.5V single supply voltage. Packaged in a VQFN.
PackageVQFN
Quick Jump:
Technical Specifications
Texas Instruments DAC8831IBRGYR technical specifications.
General
Package/Case
VQFN
Conversion Rate
2MS/s
Differential Nonlinearity
1LSB
Full Scale Error
7LSB
Integral Nonlinearity (INL)
2LSB
Interface
SPI, Serial
Lead Free
Contains Lead
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Number of Bits
16
Number of Channels
1
Number of Converters
1
Number of DAC Channels
1
Output Type
SERIAL, Voltage
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
2000000S/s
Series
DAC8831
Settling Time
1us
Supply Type
Single
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DAC8831IBRGYR Datasheet
Download the complete datasheet for Texas Instruments DAC8831IBRGYR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

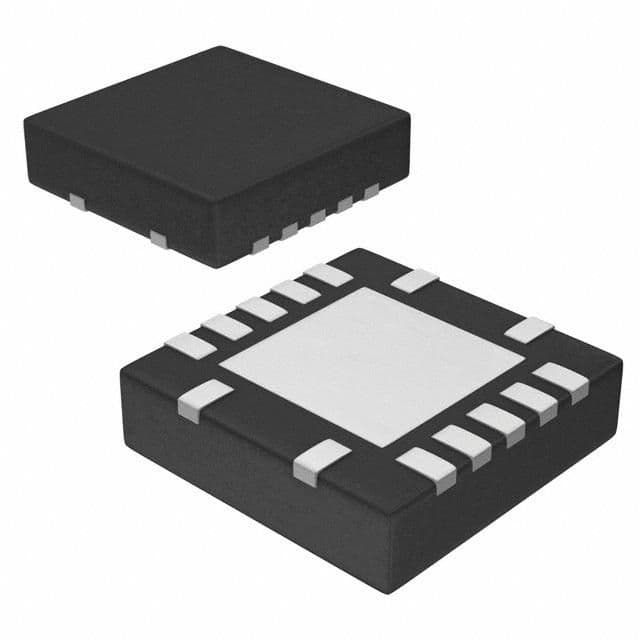

Product Images
