16-bit, single-channel, voltage-output digital-to-analog converter (DAC) featuring 2MS/s conversion rate and 1LSB integral and differential nonlinearity. Offers a wide operating temperature range of -40°C to 85°C with a low supply current of 5µA. Interface is SPI, with bipolar and unipolar output polarity options. Housed in a 14-VQFN package with tin, gold, matte contact plating.
PackageVQFN
Quick Jump:
Technical Specifications
Texas Instruments DAC8831ICRGYT technical specifications.
General
Package/Case
VQFN
Contact Plating
Tin, Gold, Matte
Conversion Rate
2MS/s
Differential Nonlinearity
1LSB
Differential Output
No
Full Scale Error
7LSB
Integral Nonlinearity (INL)
1LSB
Interface
SPI
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Nominal Supply Current
5uA
Number of Bits
16
Number of Channels
1
Number of Converters
1
Number of D/A Converters
1
Number of DAC Channels
1
Output Polarity
Bipolar, Unipolar
Output Type
Voltage
Package Quantity
250
Packaging
Tape and Reel
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
2MS/s
Settling Time
1us
Signal to Noise Ratio (SNR)
92dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DAC8831ICRGYT Datasheet
Download the complete datasheet for Texas Instruments DAC8831ICRGYT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

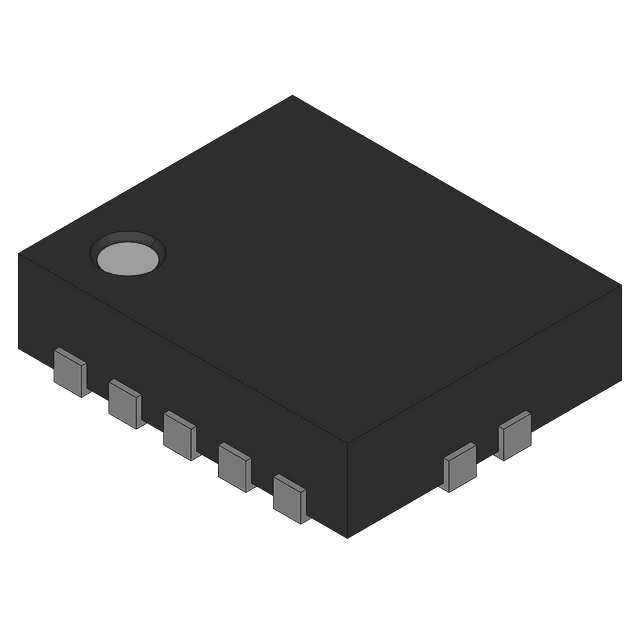

Product Images
