12-bit, 200MS/s digital-to-analog converter (DAC) with a single channel. Features 1.75LSB differential nonlinearity and 2.5LSB integral nonlinearity. Operates with a 2.7V to 5.5V supply voltage and a nominal supply current of 24mA. Housed in a 28-SOIC package with gold contact plating, this component offers a settling time of 0.03µs and 75dB spurious-free dynamic range. Suitable for operation between -40°C and 85°C, it is delivered on tape and reel.
PackageSOIC
Power170mW
Quick Jump:
Technical Specifications
Texas Instruments DAC902U/1K technical specifications.
General
Package/Case
SOIC
Contact Plating
Gold
Conversion Rate
200MS/s
Differential Nonlinearity
1.75LSB
Integral Nonlinearity (INL)
2.5LSB
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Nominal Supply Current
24mA
Number of Bits
12
Number of Converters
1
Number of DAC Channels
1
Operating Supply Voltage
5V
Output Polarity
Unipolar
Package Quantity
1000
Packaging
Tape and Reel
Power Consumption
170mW
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
200MS/s
Series
DAC902
Settling Time
0.03us
Spurious-free dynamic range (SFDR)
75dB
Weight
0.025778oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DAC902U/1K Datasheet
Download the complete datasheet for Texas Instruments DAC902U/1K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

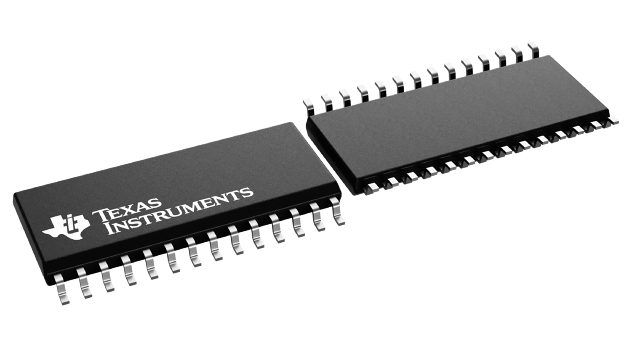

Product Images
